Trung Quốc
Thương hiệu:
Hikvision

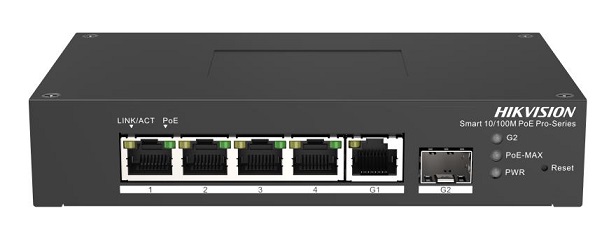

4 Port Fast Ethernet Smart Harsh PoE Switch HIKVISION DS-3T1306P-SI/HS
Hàng chính hãng
Giá:
Liên hệ
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- 4 Port Fast Ethernet Smart Harsh PoE Switch HIKVIS
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
4 Port Fast Ethernet Smart Harsh PoE Switch HIKVISION DS-3T1306P-SI/HS
- Hỗ trợ 4 cổng 10/100Mbps PoE, 1 cổng Gigabit RJ45, 1 cổng Gigabit quang.
- Chuẩn IEEE 802.3af, IEEE 802.3at cho các cổng PoE.
- Công suất đầu ra tối đa của mỗi cổng PoE là 30W.
- Các tính năng lớp 2: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, v.v.
- Cấp độ bảo vệ IP40 với khả năng bảo vệ chống xâm nhập và độ ẩm.
- Dải nhiệt độ rộng từ -30°C đến 65°C trong môi trường khắc nghiệt.
Thông số kỹ thuật
| General | |
| Shell | Metal material |
| Net Weight | 0.4 kg |
| Gross Weight | 1.0 kg |
| Dimensions (W × H × D) | 158.00 mm × 101.20 mm × 31.60 mm |
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | Power adapter: 48 V DC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 V DC (working temperature: -30°C to 65°C) |
| Installation Mode | Desk-Mounted,Rail |
| Max. Power Consumption | 65W |
| Power Consumption in Idle | 5W |
| Surge Protection | 6kV |
| Network Parameters | |
| Ports | 4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Software Function | |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP/RSTP/ERPS |
| System Maintenance | Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
- Bảo hành: 24 tháng.
4 Port Fast Ethernet Smart Harsh PoE Switch HIKVISION DS-3T1306P-SI/HS
- Hỗ trợ 4 cổng 10/100Mbps PoE, 1 cổng Gigabit RJ45, 1 cổng Gigabit quang.
- Chuẩn IEEE 802.3af, IEEE 802.3at cho các cổng PoE.
- Công suất đầu ra tối đa của mỗi cổng PoE là 30W.
- Các tính năng lớp 2: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, v.v.
- Cấp độ bảo vệ IP40 với khả năng bảo vệ chống xâm nhập và độ ẩm.
- Dải nhiệt độ rộng từ -30°C đến 65°C trong môi trường khắc nghiệt.
Thông số kỹ thuật
| General | |
| Shell | Metal material |
| Net Weight | 0.4 kg |
| Gross Weight | 1.0 kg |
| Dimensions (W × H × D) | 158.00 mm × 101.20 mm × 31.60 mm |
| Operating Temperature | -30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | Power adapter: 48 V DC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 V DC (working temperature: -30°C to 65°C) |
| Installation Mode | Desk-Mounted,Rail |
| Max. Power Consumption | 65W |
| Power Consumption in Idle | 5W |
| Surge Protection | 6kV |
| Network Parameters | |
| Ports | 4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 10.42 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Software Function | |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP/RSTP/ERPS |
| System Maintenance | Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
- Bảo hành: 24 tháng.
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
