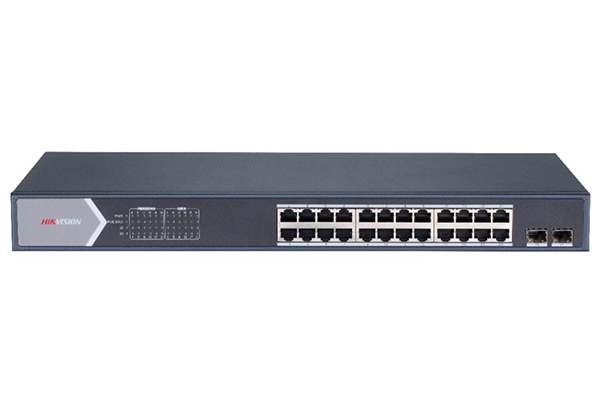

24-Port Gigabit Smart PoE Switch HIKVISION DS-3E1526P-SI

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 24-Port Gigabit Smart PoE Switch HIKVISION DS-3E15
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

24-Port Gigabit Smart PoE Switch HIKVISION DS-3E1526P-SI

- 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.

- IEEE 802.3at/af standard for PoE ports.

- Network topology management, alarm push, network health monitor.

- 6 KV surge protection for PoE ports.

- AF/AT camera can reach up to 300 m in extend mode.

- PoE watchdog to auto detect and restart the cameras that do not respond.

- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Specification

Model	DS-3E1326P-SI
Network Parameters
Port Number	24 × 100 Mbps PoE RJ45 port, and 2 × gigabit combo
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
High Priority Ports	Ports 1 to 8
Forwarding Mode	Store-and-forward switching
Working Mode	Standard mode (default) Extend mode
MAC Address Table	16K
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.5472 Mpps
Internal Cache	4 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Ports 1 to 24
Max. Port Power	30 W
PoE Power Budget	370 W
Software Function
Device Maintenance	Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration	Port rate configuration, slow control, and ports enabling
Long Range	Up to 300 m transmission
PoE Configuration	PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond PoE enabling: Support
Port Rate-Limiting	Rate-limiting for ingress and egress ports
Storm Control	Storm control of unknown unicast, multicast and broadcast
Port Mirroring	Support
Link Aggregation	Static link aggregation supported for G1 and G2 port
Port Isolation	Ports in isolation group cannot communicate with each other
QoS	WRR and SP scheduling and port priority
VLAN	4094 VLANs
STP	STP and RSTP protocols
SNMP	SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDP	LLDP protocol supported for port configuration, global configuration and neighbour discovery
General
Power Supply	100VAC~240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption	400W
Power Consumption in Idle	5W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

- Bảo hành: 24 tháng.
