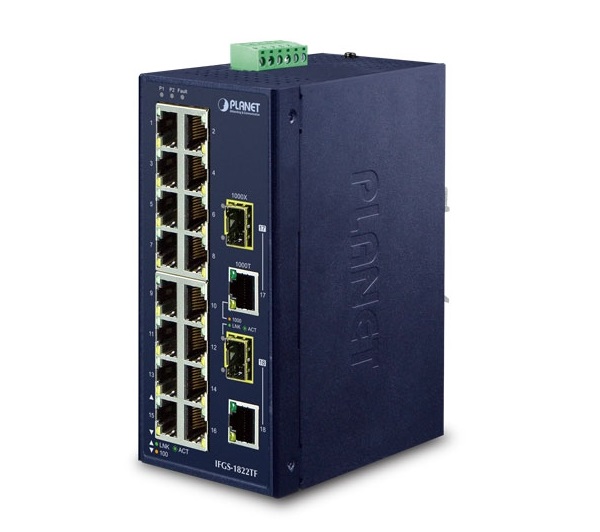

16-Port 10/100TX + 2-Port Gigabit TP/SFP Switch PLANET IFGS-1822TF

Tuần lễ giảm sốc

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 16-Port 10/100TX + 2-Port Gigabit TP/SFP Switch PL
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả: Hàng chính hãng, có CO CQ đầy đủ

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

16-Port 10/100TX + 2-Port Gigabit TP/SFP Switch PLANET IFGS-1822TF

Physical Port

- 16-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

- 2-port 10/100/1000BASE-T and 1000BASE-X combo interface

Layer 2 Features

- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard

- Supports auto-negotiation and 10/100Mbps half/full duplex mode

- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

- IEEE 802.1p CoS

- Supports 16K MAC address

- Automatic address learning and address aging

Industrial Case and Installation

- IP30 metal case

- DIN-rail and wall-mount designs

- 12 to 48V DC, redundant power with reverse polarity protection

- 24V AC power input

- Supports 6000 VDC Ethernet ESD protection

- -40 to 75 degrees C operating temperature

- Free fall, shock-proof and vibration-proof for industries

Specifications

Hardware
Fast Ethernet Copper Ports	16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Ethernet Copper Ports	Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-17 and Port-18)
SFP Slots	Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-17 and Port-18)
Switch Architecture	Store-and-Forward
Switch Fabric	7.2Gbps (non-blocking)
Throughput (packet per second)	5.36Mpps@ 64 bytes
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	4Mbits
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
ESD Protection	6KV DC
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H)	66 x 107 x 152 mm
Weight	300g
Power Requirements	Dual 12~48V DC or one 24V AC
Power Consumption	Max. 6.3 watts/21.4BTU (Ethernet full loading)
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)

- Sản xuất tại Đài Loan.

- Bảo hành: 12 tháng.
