Phatsongwifi
Đài Loan Thương hiệu: Planet

16-port 10/100/100Mbps Switch PLANET GSD-1603

Sốc xanh mặt
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
16-port 10/100/100Mbps Switch PLANET GSD-1603
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả
Hàng chính hãng, có CO CQ đầy đủ
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

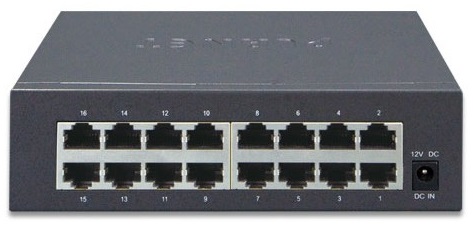

16-port 10/100/100Mbps Switch PLANET GSD-1603
PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the suitable transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
Physical Port
-16 10/100/1000BASE-T Gigabit Ethernet ports.
-Supports auto MDI/MDI-X function Layer 2 Features.
-Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards.
-Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
-Integrated address look-up engine, supporting 8K absolute MAC addresses
-9K jumbo packet support.
-IEEE 802.1Q VLAN packet transparent support.
-IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation.
-Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and autonegotiation.
-Automatic address learning and address aging.
-Supports CSMA/CD protocol.
Hardware Features
-Made of metal, desktop size and wall-mount design.
-LED indicators for system power, per port Link/Act.
-12V DC, 1A external power adapter.
-FCC, CE Class B compliant.
Đặc tính kỹ thuật

Hardware Specifications
10/100/1000BASE-T Ports 16 auto MDI/MDIX RJ45 ports
LED Display One for Power, one for Link/Act per port
Enclosure Metal
Dimensions (W x D x H) 155 x 118 x 46 mm
Weight (g) 538g
Power Requirements(External power adapter) 12VDC, 1A
Power Consumption 10 watts/34 BTU
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 8K
Flow Control Back pressure half duplex
IEEE 802.3x pause frame full duplex
Switch Fabric 32Gbps
Throughput(packet per second) 23.8Mpps@64 bytes
Jumbo packet size 9K
Standards Conformance
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulatory Compliance FCC Part 15 Class B, CE
Environments
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95%
Storage: 5~95% (non-condensing)

-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.

16-port 10/100/100Mbps Switch PLANET GSD-1603
PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the suitable transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
Physical Port
-16 10/100/1000BASE-T Gigabit Ethernet ports.
-Supports auto MDI/MDI-X function Layer 2 Features.
-Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards.
-Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
-Integrated address look-up engine, supporting 8K absolute MAC addresses
-9K jumbo packet support.
-IEEE 802.1Q VLAN packet transparent support.
-IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation.
-Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and autonegotiation.
-Automatic address learning and address aging.
-Supports CSMA/CD protocol.
Hardware Features
-Made of metal, desktop size and wall-mount design.
-LED indicators for system power, per port Link/Act.
-12V DC, 1A external power adapter.
-FCC, CE Class B compliant.
Đặc tính kỹ thuật

Hardware Specifications
10/100/1000BASE-T Ports 16 auto MDI/MDIX RJ45 ports
LED Display One for Power, one for Link/Act per port
Enclosure Metal
Dimensions (W x D x H) 155 x 118 x 46 mm
Weight (g) 538g
Power Requirements(External power adapter) 12VDC, 1A
Power Consumption 10 watts/34 BTU
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 8K
Flow Control Back pressure half duplex
IEEE 802.3x pause frame full duplex
Switch Fabric 32Gbps
Throughput(packet per second) 23.8Mpps@64 bytes
Jumbo packet size 9K
Standards Conformance
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex Flow Control)
IEEE 802.3az Energy Efficient Ethernet (EEE)
Regulatory Compliance FCC Part 15 Class B, CE
Environments
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95%
Storage: 5~95% (non-condensing)

-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
