Thiết bị tường lửa Firewall Fortinet FortiGate-401F (FG-401F-BDL-950-12)
Mã sản phẩm | FG-401F-BDL-950-12 |

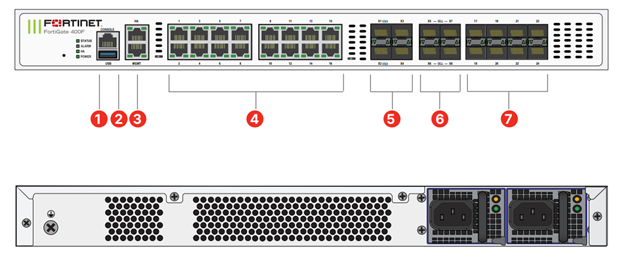

Interfaces and Modules | |
Hardware Accelerated GE RJ45 Interfaces | 16 |
Hardware Accelerated GE SFP Slots | 8 |
Hardware Accelerated 10GE SFP+ Slots | 4 |
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots | 4 |
GE RJ45 Management Ports | 2 |
USB Ports | 1 |
RJ45 Console Port | 1 |
Onboard Storage | 2x 480 GB SSD |
Trusted Platform Module (TPM) | Yes |
Included Transceivers | 2x SFP (SX 1 GE) |
System Performance — Enterprise Traffic Mix | |
IPS Throughput | 12 Gbps |
NGFW Throughput | 10 Gbps |
Threat Protection Throughput | 9 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 79.5 / 78.5 / 70 Gbps |
Firewall Latency (64 byte, UDP) | 4.19 μs / 2.5 μs |
Firewall Throughput (Packets Per Second) | 105 Mpps |
Concurrent Sessions (TCP) | 7.8 Million |
New Sessions/Second (TCP) | 500 000 |
Firewall Policies | 10 000 |
IPsec VPN Throughput (512 byte) | 55 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
Client-to-Gateway IPsec VPN Tunnels | 50 000 |
SSL-VPN Throughput | 3.6 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5000 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 8 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 6 000 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800 000 |
Application Control Throughput (HTTP 64K) | 28 Gbps |
CAPWAP Throughput (HTTP 64K) | 65 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 72 |
Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
Maximum Number of FortiTokens | 5 000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
Dimensions | |
Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
Height x Width x Length (mm) | 44.45 x 432 x 380 |
Weight | 14.33 lbs (6.5 kg) |
Form Factor | Rack Mount, 1 RU |
AC Power Consumption (Average / Maximum) | 161.1 W / 196.9 W |
AC Power Input | 100–240V AC, 50/60Hz |
AC Current (Maximum) | 6A |
Heat Dissipation | 671.85 BTU/h |
Power Supply Efficiency Rating | 80Plus Compliant |
Redundant Power Supplies (Hot Swappable) | Yes (Default dual AC PSU for 1+1 Redundancy) |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 5–90% non-condensing |
Noise Level | LPA 48 dBA / LWA 55 dBA |
Airflow | Side and Front to Back |
Operating Altitude | Up to 10,000 ft (3048 m) |
Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
Các phụ kiện và Module dùng với FortiGate 401F
Optional Accessories | SKU | Description |
1 GE SFP LX Transceiver Module | FN-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
1 GE SFP RJ45 Transceiver Module | FN-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
1 GE SFP SX Transceiver Module | FN-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
10 GE SFP+ RJ45 Transceiver Module | FN-TRAN-SFP+GC | 10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots |
10 GE SFP+ Transceiver Module, Short Range | FN-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
10 GE SFP+ Transceiver Module, Long Range | FN-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
10 GE SFP+ Transceiver Module, Extended Range | FN-TRAN-SFP+ER | 10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots |
AC power adaptor | SP-FG400F-PS | AC power supply for FG-400/401F, FG-600/601F, power cable SP-FGPCOR-XX sold separately |
