Trung Quốc Thương hiệu: Huawei

Thiết bị phát sóng wifi Huawei AP263 (11ax indoor,2+2 dual bands,smart antenna,USB,BLE)

Chính hãng giảm sốc
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
AP263
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

• Data Rate: 2.975Gbps
• Maximum transmit power: 23dBm
• 2 x GE Copper
• Support Leader AP, WAC free, license free
• Support Cloud management, Support PSK, Portal, SMS, Social media Authentication
• Support WPA3 protocol, DTLS Hardware Encryption
• Support Telemetry, collecting AP status real-time

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

AP263 is Huawei's Wi-Fi 6 (802.11ax) wall plate AP. This AP features high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is applicable to indoor coverage in SME markets, such as SMB office, hospitals, and cafes.

  • Working simultaneously on the 2.4 GHz (2x2) + 5 GHz (2x2) frequency bands
  • Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
  • Various installation modes for easy deployment, including wall-mounting and plate-mounting
  • Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
  • USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
  • Bluetooth serial interface-based O&M through built-in Bluetooth by collaborating with CloudCampus APP
  • Working modes: Fit, Fat, and cloud management


Overview

Table 5-56 Basic information about the AP263
Item Details
Description AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
Part Number 50084981
Model AP263
First supported version V200R021C01

Appearance

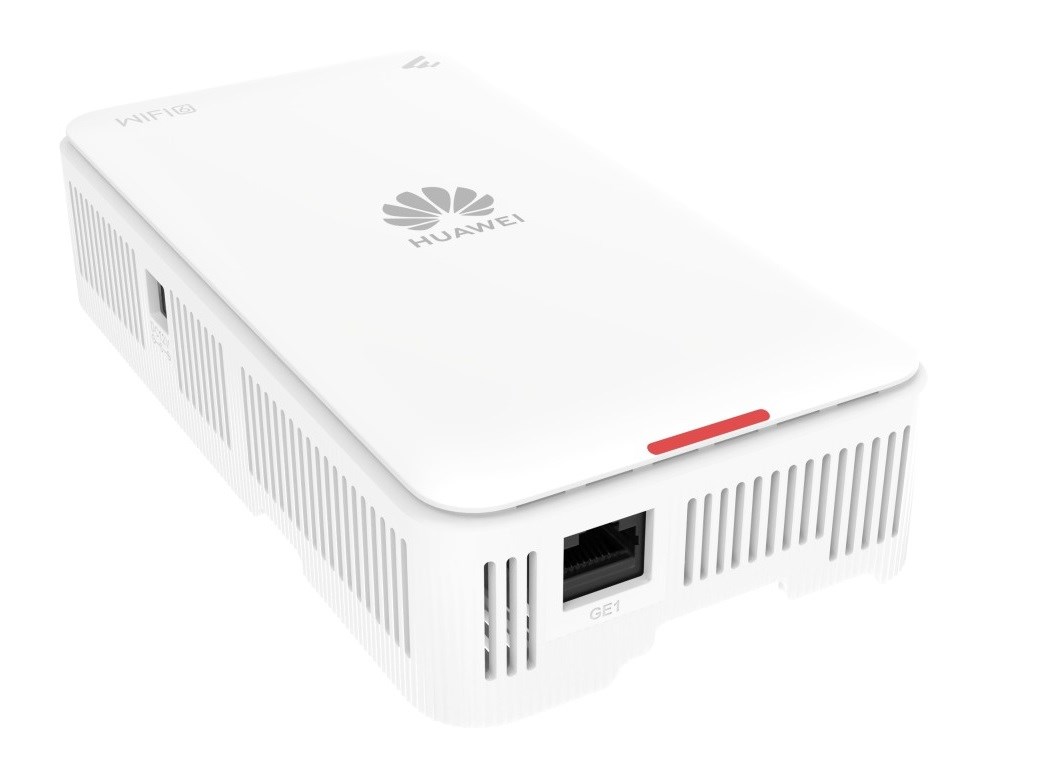

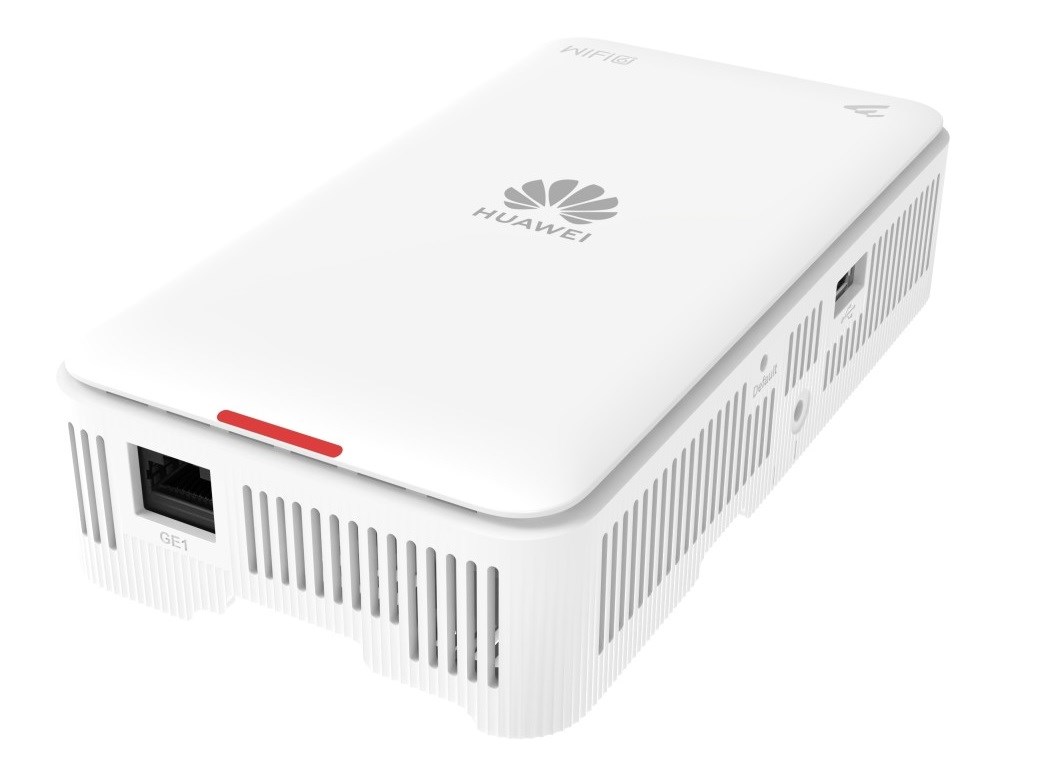

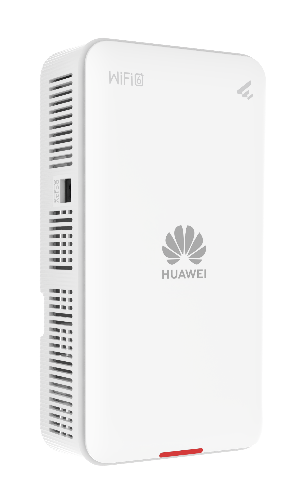

Figure 5-37 Appearance of the AP263

Ports

Figure 5-38 Ports on the AP263

1

GE0/PoE_IN

2

GE1

3

USB

4

DC 12V
Table 5-57 Ports on the AP263
Port Connector Type Description Available Components
GE0/PoE_IN RJ45 10/100/1000M auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input.

Network cable
GE1 RJ45 Ethernet electrical port that supports 10/100/1000M auto-sensing and connects to the wired Ethernet

Network cable
DC 12V DC connector Connects to a 12 V power adapter.

12 V DC power adapter
USB USB 2.0 Type A Connects to an IoT terminal to implement IoT applications.

IoT module

Indicators and Buttons

Figure 5-39 Indicators and buttons on the AP263

The indicator is located inside the panel, which turns on after the AP is powered on.

1

Indicator

2

Default
Table 5-58 Indicators on the AP263
Silkscreen Name Color Status Description
- System indicator Green Steady on

Default status after power-on.

The AP is just powered on and the software is not started yet.
Green Steady on after blinking once

Software startup status.

After the system is reset and starts uploading the software, the indicator blinks white once. Until the software is uploaded and started, the indicator remains steady white.
Green Slow blinking (0.5 Hz)

The AP is running properly, the Ethernet connection is normal, and STAs are associated with the AP.

This state is supported in V200R022C00 and later versions.
Green Slow blinking (0.2 Hz)

The AP is running properly, and the Ethernet connection is normal.

For V200R022C00 and later versions, this state also indicates that no STA is associated with the AP.
Green Blinking once every 0.25s (4 Hz)

Alarm.

  • The software is being upgraded.
  • After the software is loaded and started, the AP requests to go online if it works in Fit AP or cloud-based management mode. The indicator remains in this state before the AP successfully goes online.
  • The AP works in Fit AP or cloud-based management mode and fails to go online.
Red Steady on

Fault.

A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually.
Table 5-59 Buttons on the AP263
Silkscreen Name Description
Default Reset button
  • For versions earlier than V200R021C11, hold down the button for more than 3 seconds to restore the factory settings and restart the device.
  • For V200R021C11 and later versions, if you press the button, the device resets; if you hold down the button for more than 6 seconds, the device restores the factory settings, switches to the Fit mode, and restarts.

Technical Specifications

Table 5-60 Technical specifications of the AP263
Item Specification
Installation Type
  • Desk
  • Wall
  • Ceiling
  • Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Weight with packaging [kg(lb)] 0.542 kg (1.195 lb)
Storage NAND Flash 256 MB
Console port BLE console
Maximum power consumption [W] 12 W
Maximum heat dissipation [BTU/hour] 41 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

12±10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0 (supporting 5 W power supply)
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4G: 802.11b/g/n/ax

5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

2 dBi/chain (peak value)

1 dBi (combined gain)

5G:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

20 dBm/chain

23 dBm (combined power)

5G:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 69.7 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB function is unavailable.
DC power supply description No function is limited.
