Đài Loan Thương hiệu: EnGenius

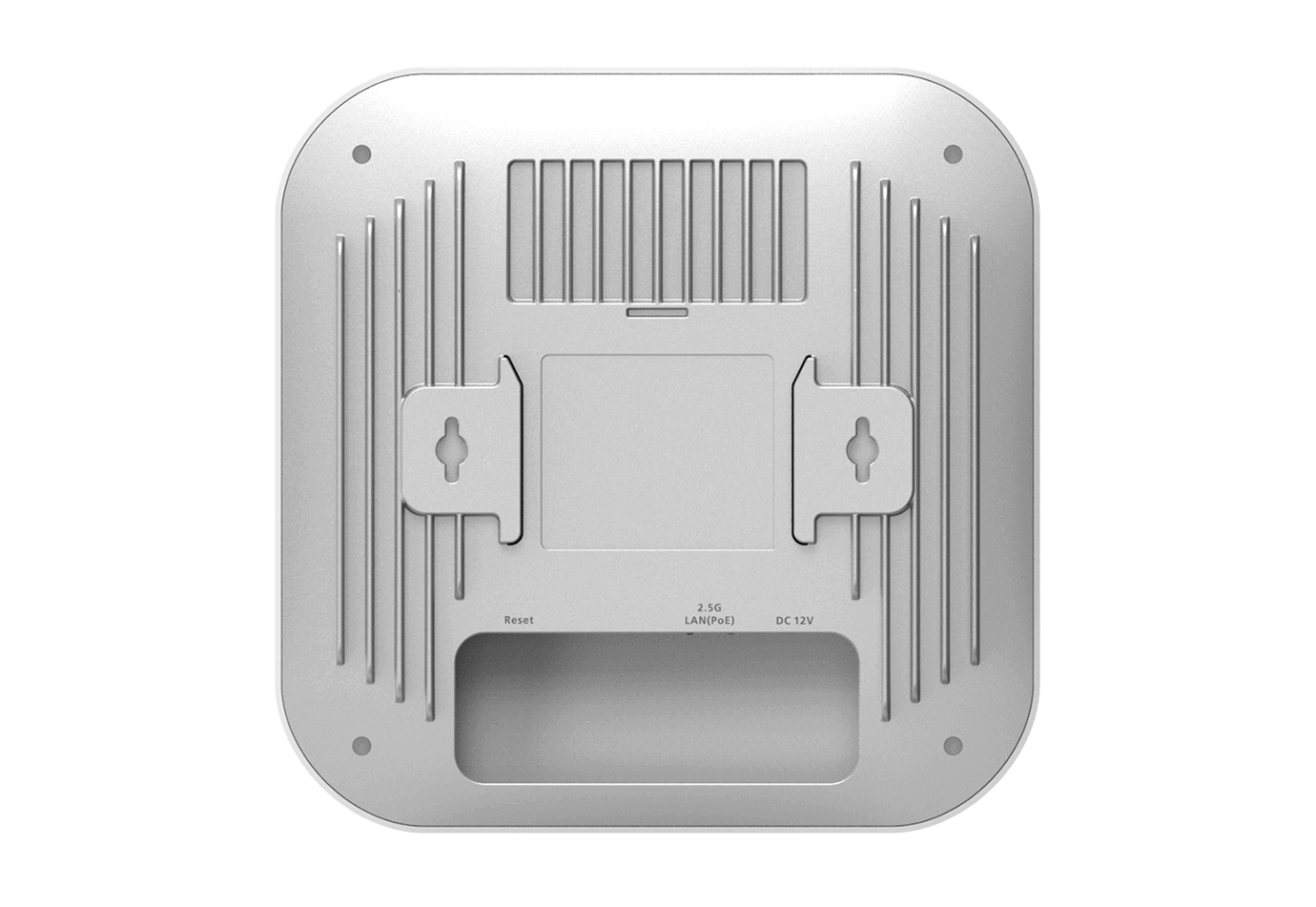

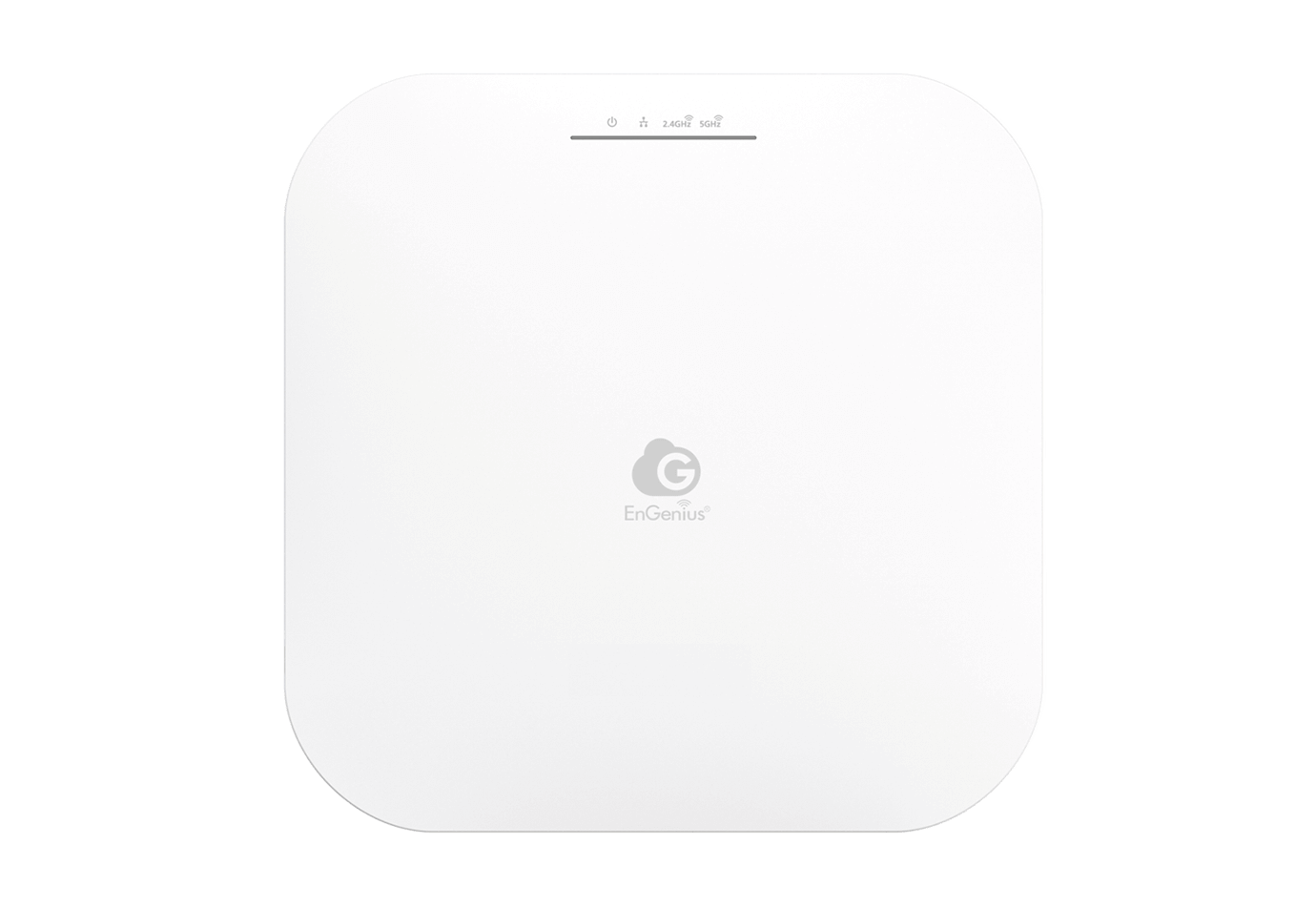

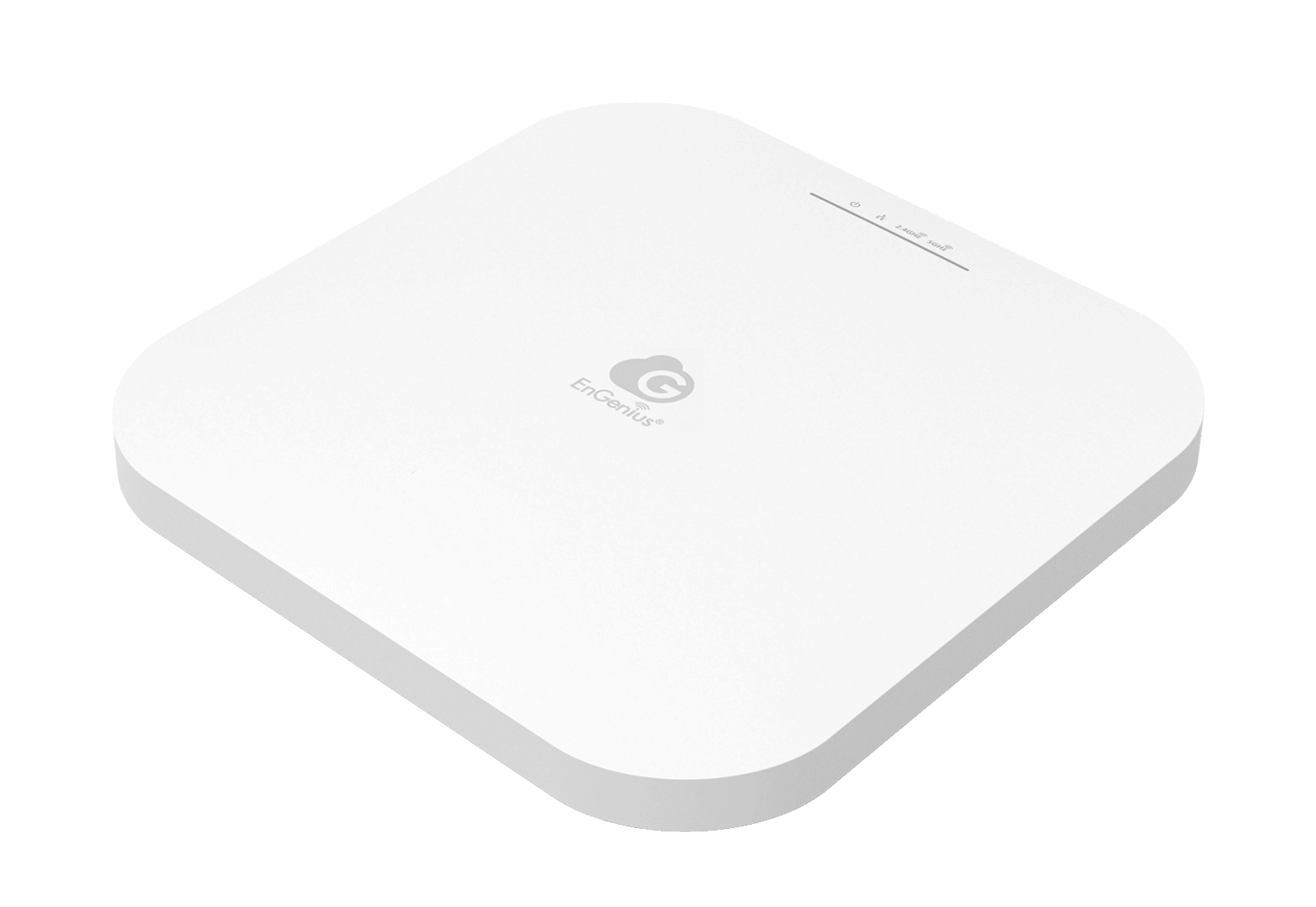

Thiết bị phát sóng wifi Engenius ECW230 Wi-Fi 6 (802.11ax)

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
ECW230
Kho hàng
Còn hàng
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

ECW230 Wi-Fi 6 (802.11ax) 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi.

Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Product Highlight

ECW230 Wi-Fi 6 (802.11ax) 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi.

  • Dual concurrent 802.11ax architecture & backward-compatible.
  • Supercharged speeds up to 2,400 Mbps (5 GHz) & up to1,200Mbps (2.4 GHz).
  • 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet).
  • WPA3 & WPA2-AES authentication support.
  • Cloud Managed with AP & Mesh mode.
  • Quick-scan device register & configuration and remote monitoring & troubleshooting.
  • Cloud manages an unlimited number of APs from anywhere with the EnGenius Cloud App.
  • Mesh wireless support simplifies setup, optimizes signals, and enables  self-heals.

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac

Antenna

4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
Integrated Omni-Directional Antenna

Physical Interface

1 x 10/100/1000/2500 Ethernet Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (optional)

Maximum Power Consumption

19.5W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power Up to 20 dBm on 2.4 GHz

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

4 × 4:4

SU-MIMO

Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.

MU-MIMO

(4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.

Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

511 Per Radio
