Thiết bị phát sóng Wifi Aruba AP515 / IAP515 (Siêu wifi chuẩn AX MU-MIMO)

₫ 8.500.000 7.500.000 ₫ Giảm 12%

Thời gian bảo hành: 12 tháng

Tình trạng hàng: New

Tính năng: Aruba AP515 là dòng wifi cao cấp chuẩn AX đời mới nhất hiện nay, Wifi phù hợp cho các công ty, văn phòng, phòng games, nơi kéo livestream, cày view youtube ... Wifi với công nghệ AX đáp ứng băng thông cực cao cho từng per station.

Dịch vụ khuyến mãi: Khách hàng là đại lý của Muawifi.com, Phatsongwifi.com hoặc khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0938912229 để có giá tốt.

Kho hàng:

Review sản phẩm

Số lượng:

Nhà bán lẻ: phatsongwifi.com

  • delivery
    Giao hàng & thu tiền tận nơi trên toàn quốc
  • delivery
    Đổi trả trong vòng 7 ngày (Áp dụng cho các sản phẩm được dùng thử)
  • delivery
    Bảo hành kỹ thuật 1 đổi 1 trong thời gian 30 ngày.
  • delivery
    Nhà cung cấp giải pháp mạng và wifi chuyên nghiệp.
  • delivery
    Liên hệ. 0901188385 - 0938912229
  • delivery
    Liên hệ. Skype: hvdung.itnet

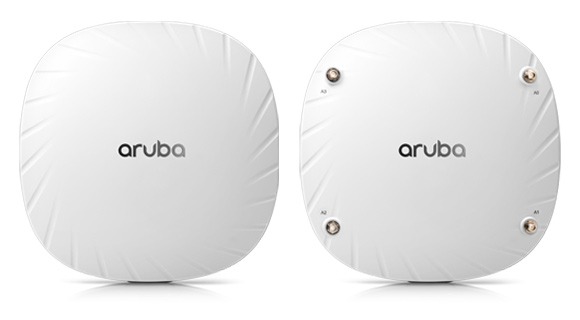

Giới thiệu thiết bị phát wifi Aruba AP-515

Thiết bị wifi aruba AP-515 chuyên dụng là dòng wifi công nghiệp bán chạy nhất thế giới thuộc tập đoàn HP Enterprise Hoa Kỳ. Sở hữu thiết kế tối giản, có thể ốp trần hoặc treo tường tinh tế Aruba AP-515 hứa hẹn sẽ chiếm lĩnh thị trường wifi chuyên dụng cho quán cafe, nhà hàng lớn.

Thiết bị wifi aruba AP-515 đặc biệt với khá nhiều tính năng như wifi marketing, chịu tải 256 User với chuẩn wifi 6 (chuẩn ax), antena MIMO cấp phát 16 SSID, hỗ trợ quản lý tập trung nhiều AP ko cần controller vật lý…

Aruba AP-515 sẽ rất thích hợp cho mô hình văn phòng, nhà xưởng, khách sạn lớn cần một mạng wifi khổng lồ trên diện rộng.

Thông số kỹ thuật wifi Aruba AP-515 :

Số radio: 2 công nghệMU- MIMO 4X4:4+2×2:2
Hỗ trợ băng tầng: Dual concurrent 2,4Ghz & 5Ghz
Chuẩn kết nối: 802.11a/b/g/n/ac wave 2/ax
Tốc độ truy cập: 5,375 Mbps
Số lượng SSIDs: 16
Công suất phát 2.4 gHz/5 gHz: 24 dBm
Số cổng kết nối : 2 x Gigabit Smart Rate 2,5GBps
Khả năng chịu tải : 100-512 users
Nguồn:12V DC 3,0A và POE

Bảng so sánh thông số kỹ thuật thiết bị phát wifi Aruba 5 Seri:

TECHNICAL SPECIFICATIONS
AP type Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
Radio 5Ghz - Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max)
- Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
- Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Radio 2.4Ghz - Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate to individual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Maximum number of associated client devices Up to 512 associated client devices per radio
Maximum number of BSSIDs 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply) - 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channels Dependent on configured regulatory domain
Supported radio technologies - 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel)
Supported modulation types - 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) support HT20/40
802.11ac very high throughput (VHT) support: VHT20/40/80/160
802.11ax high efficiency (HE)
support:
HE20/40/80/160
Supported data rates (Mbps): - 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40)
- 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Transmit power Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements): - 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
WI-FI ANTENNAS
Antenna Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.
OTHER INTERFACES
Interfaces • E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- PoE-PD: 48Vdc (nominal) 802.3af/at/bt (class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
• E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
DC power interface 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
USB 2.0 host interface (Type A
connector)
Capable of sourcing up to 1A / 5W to an attached device
Bluetooth Low Energy (BLE5.0) and
Zigbee (802.15.4) radio
- Bluetooth 5: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity
- Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity
- Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi
Visual indictors (two multi-color
LEDs):
For System and Radio status
Reset button: Factory reset, LED mode control (normal/off)
Serial console interface Proprietary, micro-B USB physical jack
Security slot Kensington security slot
FLEXIBLE OPERATION AND MANAGEMENT
Controller-less (Instant) mode In controllerless mode, one AP serves as a virtual controller for the entire network
Mobility Controller mode For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally
managed traffic forwarding and segmentation, data encryption, and policy enforcement.
Management options Aruba Central (cloud-managed) or Aruba AirWave
POWER SOURCES AND POWER CONSUMPTION
Power Sources: The AP supports
direct DC power and Power over
Ethernet

- The AP supports direct DC power and Power over Ethernet
- When both DC and POE power sources are available, DC power takes priority over POE
- Power sources are sold separately; see the ordering Information section below for details
- When powered by DC or 802.3at (class 4) / 802.3bt (class 5) PoE, the AP will operate without restrictions
- When powered by 802.3af (class 3) PoE and with the IPM feature enabled, the AP will start up in unrestricted  mode, but it may apply restrictions depending on the PoE budget and actual power. What IPM restrictions to apply, and in what order, is programmable.
-  Operating the AP with an 802.3af (class 3 or lower) PoE source and IPM disabled is not supported.

Maximum (worst-case) power
consumption (without / with a USB
device attached):
- DC powered: 16.0W
- PoE powered (802.3af, IPM enabled): 13.5W
- PoE powered (802.3at/bt): 20.8W
- All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 5.7W (PoE powered) or 5.5W (DC powered).
Maximum (worst-case) power
consumption in idle mode:
12.6W (PoE) or 9.7W (DC).
Maximum (worst-case) power
consumption in deep-sleep mode:
5.9W (PoE) or 1.5W (DC).
MECHANICAL SPECIFICATIONS
Dimensions/weight - 200mm (W) x 200mm (D) x 46mm (H)/ 7.9” (W) x 7.9” (D) x 1.8” (H)
- 810g/28.5oz
Dimensions/weight (shipping): - 230mm (W) x 220mm (D) x 72mm (H)/ 9.1” (W) x 8.7” (D) x 2.8” (H)
- 1010g/35.5oz

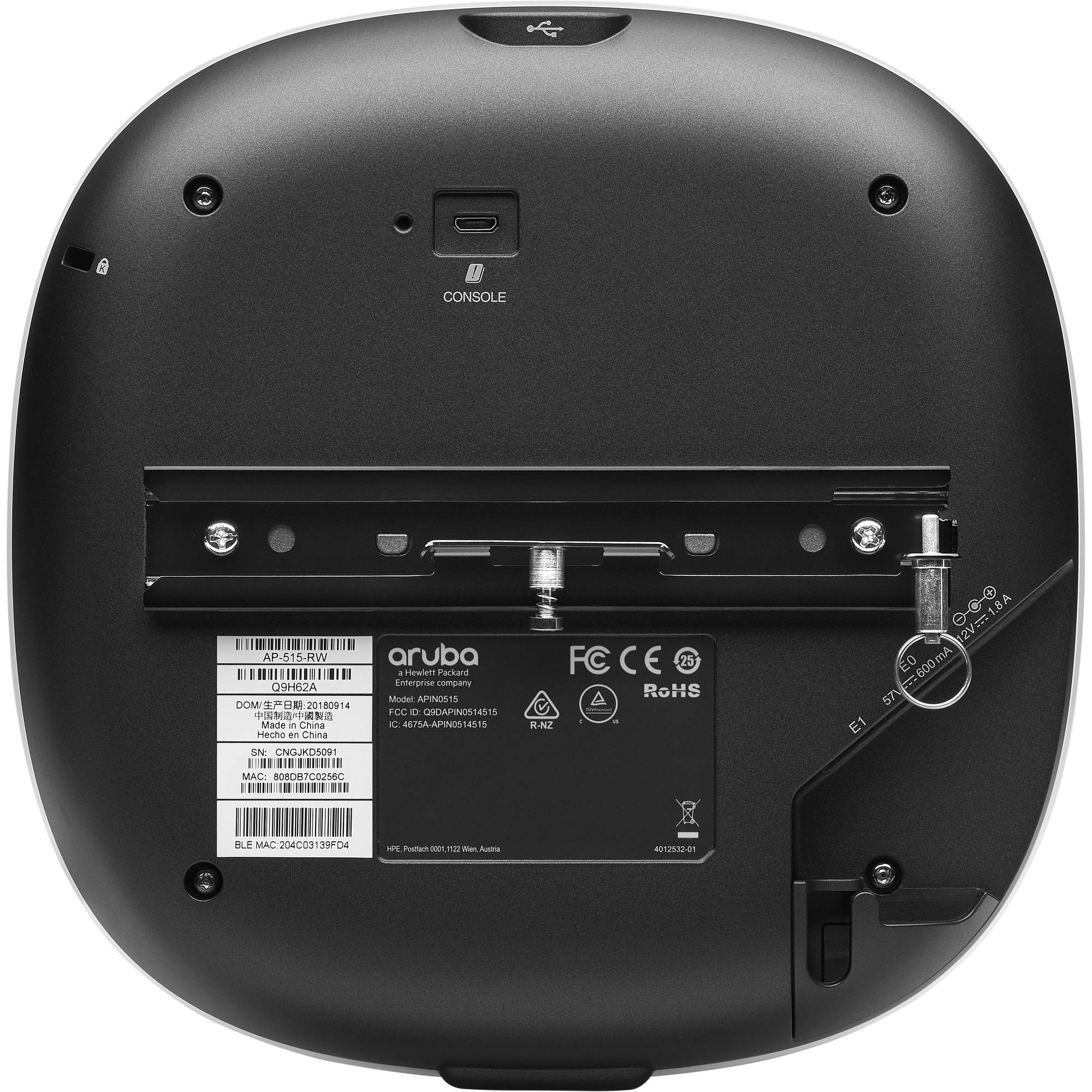

Mounting details A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 500 Series Ordering Guide for details.
ENVIRONMENTAL SPECIFICATIONS
Operating conditions • Operating conditions
- Temperature: 0C to +50C/+32F to +122F
- Humidity: 5% to 93% non-condensing
- AP is plenum rated for use in air-handling spaces
- ETS 300 019 class 3.2 environments
Storage and transportation conditions - Temperature: -40C to +70C/-40F to +158F
- Humidity: 5% to 93% non-condensing
​- ETS 300 019 classes 1.2 and 2.3 environments
RELIABILITY
Mean Time Between Failure (MTBF):  560,000hrs (64yrs) at +25C operating temperature.
MINIMUM OPERATING SYSTEM SOFTWARE VERSIONS​
ArubaOS 8.4.0.0, 8.6.0.0
Minimum Software Release 8.4.0.0, 8.6.0.0

Các mã đặt hàng cho Aruba AP-515

Q9H59A Aruba AP-515 (EG) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H62ACM Aruba CM AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H63ACM Aruba CM AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H60A Aruba AP-515 (IL) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H61A Aruba AP-515 (JP) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H62A Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H63A Aruba AP-515 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H69A Aruba AP-515 (EG) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H70A Aruba AP-515 (IL) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H71A Aruba AP-515 (JP) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H72A Aruba AP-515 (RW) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
Q9H73A Aruba AP-515 (US) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
