Phatsongwifi
-17%
Mỹ Thương hiệu: Fortinet

Thiết bị tường lửa Firewall Fortinet 80E / Router Fortinet 80E

Sốc xanh mặt
Giá: 2.900.000 ₫ 3.500.000 ₫ -17%
Bảo hành:
Tình trạng
Hàng còn mới 98%
Part Number
80E
Kho hàng
Còn hàng
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả

14 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 1 x HA port, 12 x switch ports), 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). Max managed FortiAPs (Total/Tunnel) 32/16

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

FG-80E Overview

FG-80E is the Fortinet NGFW Entry-level Series FortiGate 80E firewall. The FortiGate 80E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.

Quick Spec

Table 1 shows the quick spec.

SKU FG-80E
Firewall 4 Gbps
IPS 450 Mbps
NGFW 360 Mbps
Threat Protection 250 Mbps
Interfaces 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports),

2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots)

Product Details

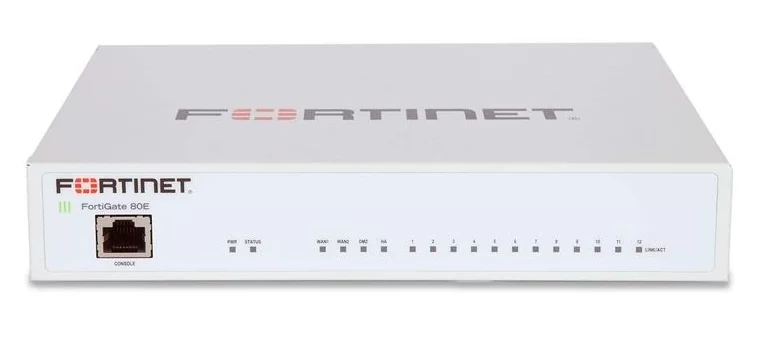

Figure 1 shows the front view of FG-80E.

fortinet fg-80e
fortinet fg-80e

Note:

① Console Port

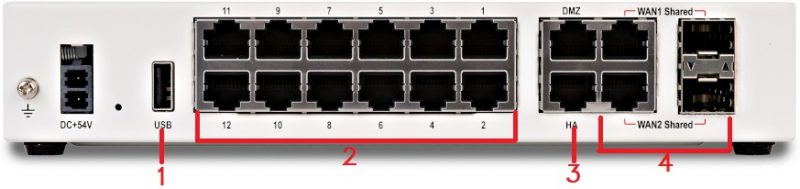

Figure 2 shows the rear view of FG-80E.

FortiGate 80E FG-80E
FortiGate 80E FG-80E

Note:

① USB Port
② 12x GE RJ45 Ports
③ 2x GE RJ45 DMZ/HA Ports
④ 2x GE RJ45/SFP Shared Media Pairs

Compare to Similar Item

Table 2 shows the comparison of FG-90E and FG-80E.

Sku FG-90E FG-80E
Firewall 4 Gbps 4 Gbps
IPS 470 Mbps 450 Mbps
NGFW 375 Mbps 360 Mbps
Threat Protection 270 Mbps 250 Mbps
Interfaces 16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x switch ports) 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports),

2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots)

Get More Information

Do you have any question about the FG-80E?

Contact us now via Live Chat or sales@innotel.com.vn

FG-80E Specification
Type FORTIGATE 80E

Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Ports 12
GE RJ45 PoE/+ Ports –
GE RJ45 DMZ/HA Ports 2
USB Ports 1
Console (RJ45) 1
Internal Storage –

System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP Packets) 3 μs
Firewall Throughput (Packet per Second) 6 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 2.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2,500
SSL-VPN Throughput 200 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 135
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 95,000
Application Control Throughput (HTTP 64K) 900 Mbps
CAPWAP Throughput (HTTP 64K) 920 Mbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of Switches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering

System Performance
IPS Throughput 450 Mbps
NGFW Throughput 360 Mbps
Threat Protection Throughput 250 Mbps

Dimensions and Power
Height x Width x Length 1.65 x 8.5 x 7 inches

42 x 216 x 178 mm
Form Factor Desktop
Power Required 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) 18 W / 25 W
Current (Maximum) 100V AC / 0.25A, 240V AC / 0.11A
Heat Dissipation 85.30 BTU/h

Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 16,404 ft (5,000 m)
Compliance FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

FG-80E Overview

FG-80E is the Fortinet NGFW Entry-level Series FortiGate 80E firewall. The FortiGate 80E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses.

Quick Spec

Table 1 shows the quick spec.

SKU FG-80E
Firewall 4 Gbps
IPS 450 Mbps
NGFW 360 Mbps
Threat Protection 250 Mbps
Interfaces 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports),

2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots)

Product Details

Figure 1 shows the front view of FG-80E.

fortinet fg-80e
fortinet fg-80e

Note:

① Console Port

Figure 2 shows the rear view of FG-80E.

FortiGate 80E FG-80E
FortiGate 80E FG-80E

Note:

① USB Port
② 12x GE RJ45 Ports
③ 2x GE RJ45 DMZ/HA Ports
④ 2x GE RJ45/SFP Shared Media Pairs

Compare to Similar Item

Table 2 shows the comparison of FG-90E and FG-80E.

Sku FG-90E FG-80E
Firewall 4 Gbps 4 Gbps
IPS 470 Mbps 450 Mbps
NGFW 375 Mbps 360 Mbps
Threat Protection 270 Mbps 250 Mbps
Interfaces 16x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x HA port, 12x switch ports) 14x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12x switch ports),

2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots)

Get More Information

Do you have any question about the FG-80E?

Contact us now via Live Chat or sales@innotel.com.vn

FG-80E Specification
Type FORTIGATE 80E

Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2
GE RJ45 Ports 12
GE RJ45 PoE/+ Ports –
GE RJ45 DMZ/HA Ports 2
USB Ports 1
Console (RJ45) 1
Internal Storage –

System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 4 / 4 / 4 Gbps
Firewall Latency (64 byte UDP Packets) 3 μs
Firewall Throughput (Packet per Second) 6 Mpps
Concurrent Sessions (TCP) 1.3 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte) 2.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2,500
SSL-VPN Throughput 200 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 135 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 135
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 95,000
Application Control Throughput (HTTP 64K) 900 Mbps
CAPWAP Throughput (HTTP 64K) 920 Mbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of Switches Supported 8
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering

System Performance
IPS Throughput 450 Mbps
NGFW Throughput 360 Mbps
Threat Protection Throughput 250 Mbps

Dimensions and Power
Height x Width x Length 1.65 x 8.5 x 7 inches

42 x 216 x 178 mm
Form Factor Desktop
Power Required 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) 18 W / 25 W
Current (Maximum) 100V AC / 0.25A, 240V AC / 0.11A
Heat Dissipation 85.30 BTU/h

Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 16,404 ft (5,000 m)
Compliance FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
