Mỹ Thương hiệu: Cisco

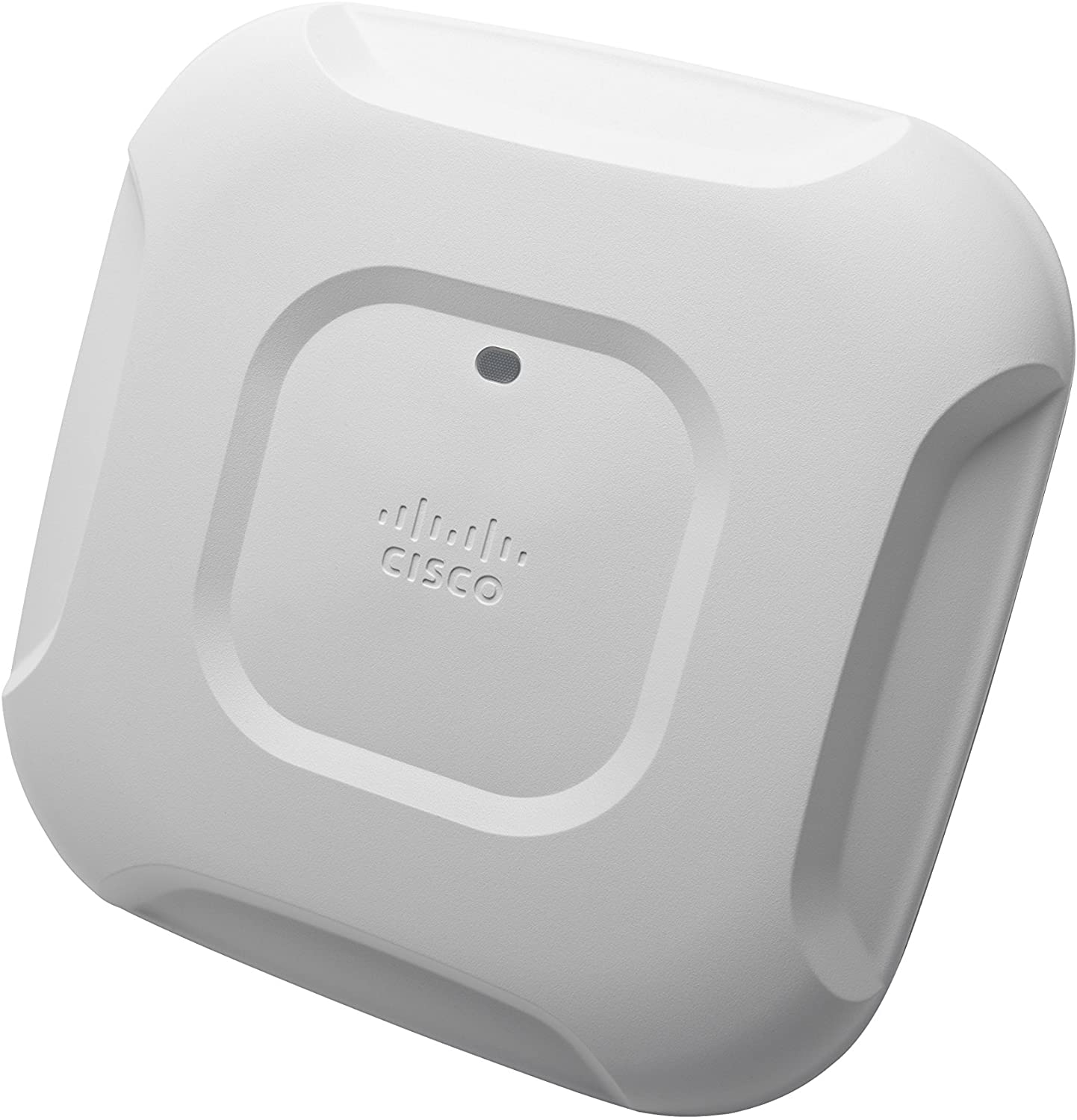

Thiết bị phát sóng wifi Cisco 3702I-C-K9

Giá rẻ quá
Giá: 12.700.000 ₫ 15.700.000 ₫ -19%
Tình trạng
Like new 99%
Part Number
Cisco 3702I-C-K9
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0907591863 - 0396827937 để có giá tốt.
Mô tả
This Cisco Aironet 3702i Access Point is for indoor environments using internal antennas 802.11ac with 4x4 multiple-input multiple-output (MIMO) technology with three spatial streams, offering sustained 1.3-Gbps rates over a greater range for more capacity and reliability than competing access points.
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh
Software
  • Cisco Unified Wireless Network Software Release 7.6 or later

Supported wireless LAN controllers

  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, cisco Virtual Wireless Controller
  • Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches

802.11n version 2.0 (and related) capabilities

  • 4x4 MIMO with three spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

  • 4x4 MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support

Maximum transmit power

  • 2.4 GHz
    • 802.11b
      • 23 dBm, 4 antennas
    • 802.11g
      • 23 dBm, 4 antennas
    • 802.11n (HT20)
      • 23 dBm, 4 antennas
  • 5 GHz
    • 802.11a
      • 23 dBm, 4 antennas
    • 802.11n (HT20)
      • 23 dBm, 4 antennas
    • 802.11n (HT40)
      • 23 dBm, 4 antennas
  • 802.11ac
    • non-HT80: 23 dBm, 4 antennas
    • VHT20 23 dBm, 4 antennas
    • VHT40: 23 dBm, 4 antennas
    • VHT80: 23 dBm, 4 antennas
    • VHT20-STBC: 23 dBm, 4 antennas
    • VHT40-STBC: 23 dBm, 4 antennas
    • VHT80-STBC: 23 dBm, 4 antennas

Integrated antenna

  • 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
  • 5 GHz, gain 6 dBi, internal omni, horizontal beamwidth 360°

External antenna (sold separately)

  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)

Indicators

  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

  • Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

  • 2.5 lb (1.13 kg)

Environmental

  • Non operating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Non operating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% percent (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.

System memory

  • 512 MB DRAM
  • 64 MB flash

Input power requirements

  • 44 to 57 VDC
  • Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

  • 15W
  • Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

Powering options

  • Aironet 3700 without an add-on module
    • 802.3at PoE+
    • Enhanced PoE
    • Cisco AP3700 power injectors (AIR-PWRINJ4=)
    • Cisco AP3700 local power supply (AIR-PWR-B=)
  • Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 4x4 to 3x3 and come up under PoE.
  • Aironet 3700 with an add-on module
    • 802.3at PoE+
    • Enhanced PoE
    • Cisco AP3700 power injectors (AIR-PWRINJ4=)
    • Cisco AP3700 local power supply (AIR-PWR-B=)
  • Note: If 802.3af PoE is the source of power, the access point with module will dynamically shift from x4 to 2x2 and come up under PoE.

Warranty

  • Limited lifetime hardware warranty

Compliance standards

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155
  • Radio approvals:
  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
  • IEEE standards:
  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5
  • Security:
  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
  • Extensible Authentication Protocol (EAP) types:
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2
  • MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • EAP-Flexible Authentication via Secure Tunneling (FAST)
  • PEAP v1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)
  • Multimedia:
  • Wi-Fi Multimedia (WMM)
  • Other:
  • FCC Bulletin OET-65C
  • RSS-102
Software
  • Cisco Unified Wireless Network Software Release 7.6 or later

Supported wireless LAN controllers

  • Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, cisco Virtual Wireless Controller
  • Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches

802.11n version 2.0 (and related) capabilities

  • 4x4 MIMO with three spatial streams
  • Maximal ratio combining (MRC)
  • 802.11n and 802.11a/g beamforming
  • 20- and 40-MHz channels
  • PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 dynamic frequency selection (DFS)
  • Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

  • 4x4 MIMO with three spatial streams
  • MRC
  • 802.11ac beamforming
  • 20-, 40-, and 80-MHz channels
  • PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
  • Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
  • 802.11 DFS
  • CSD support

Maximum transmit power

  • 2.4 GHz
    • 802.11b
      • 23 dBm, 4 antennas
    • 802.11g
      • 23 dBm, 4 antennas
    • 802.11n (HT20)
      • 23 dBm, 4 antennas
  • 5 GHz
    • 802.11a
      • 23 dBm, 4 antennas
    • 802.11n (HT20)
      • 23 dBm, 4 antennas
    • 802.11n (HT40)
      • 23 dBm, 4 antennas
  • 802.11ac
    • non-HT80: 23 dBm, 4 antennas
    • VHT20 23 dBm, 4 antennas
    • VHT40: 23 dBm, 4 antennas
    • VHT80: 23 dBm, 4 antennas
    • VHT20-STBC: 23 dBm, 4 antennas
    • VHT40-STBC: 23 dBm, 4 antennas
    • VHT80-STBC: 23 dBm, 4 antennas

Integrated antenna

  • 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
  • 5 GHz, gain 6 dBi, internal omni, horizontal beamwidth 360°

External antenna (sold separately)

  • Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
  • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

  • 10/100/1000BASE-T autosensing (RJ-45)
  • Management console port (RJ-45)

Indicators

  • Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

  • Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

  • 2.5 lb (1.13 kg)

Environmental

  • Non operating (storage) temperature: -22° to 158°F (-30° to 70°C)
  • Non operating (storage) altitude test: 25˚C, 15,000 ft.
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Operating humidity: 10% to 90% percent (noncondensing)
  • Operating altitude test: 40˚C, 9843 ft.

System memory

  • 512 MB DRAM
  • 64 MB flash

Input power requirements

  • 44 to 57 VDC
  • Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

  • 15W
  • Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

Powering options

  • Aironet 3700 without an add-on module
    • 802.3at PoE+
    • Enhanced PoE
    • Cisco AP3700 power injectors (AIR-PWRINJ4=)
    • Cisco AP3700 local power supply (AIR-PWR-B=)
  • Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 4x4 to 3x3 and come up under PoE.
  • Aironet 3700 with an add-on module
    • 802.3at PoE+
    • Enhanced PoE
    • Cisco AP3700 power injectors (AIR-PWRINJ4=)
    • Cisco AP3700 local power supply (AIR-PWR-B=)
  • Note: If 802.3af PoE is the source of power, the access point with module will dynamically shift from x4 to 2x2 and come up under PoE.

Warranty

  • Limited lifetime hardware warranty

Compliance standards

  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155
  • Radio approvals:
  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
  • IEEE standards:
  • IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
  • IEEE 802.11ac Draft 5
  • Security:
  • 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  • 802.1X
  • Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
  • Extensible Authentication Protocol (EAP) types:
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2
  • MSCHAPv2)
  • Protected EAP (PEAP) v0 or EAP-MSCHAPv2
  • EAP-Flexible Authentication via Secure Tunneling (FAST)
  • PEAP v1 or EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)
  • Multimedia:
  • Wi-Fi Multimedia (WMM)
  • Other:
  • FCC Bulletin OET-65C
  • RSS-102
