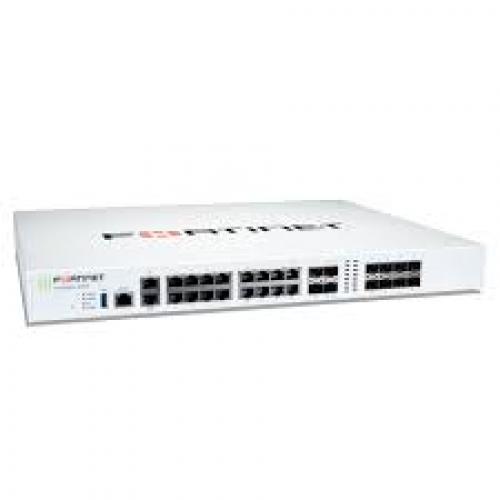

FG-201E-BDL-950-12 "FortiNet FortiGate 201E Bundle Security Appliance 24x7 Hardware : 18 x GE RJ45 (including 2 x WAN ports, 1 x MGMT port, 1 X HA port, 14 x switch ports), 4 x GE SFP slots, SPU NP6Lite and CP9 hardware accelerated, 480GB onboard SDD storage. Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) "
FG-201E-BDL-950-12 "FortiNet FortiGate 201E Bundle Security Appliance 24x7 Hardware : 18 x GE RJ45 (including 2 x WAN ports, 1 x MGMT port, 1 X HA port, 14 x switch ports), 4 x GE SFP slots, SPU NP6Lite and CP9 hardware accelerated, 480GB onboard SDD storage. Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) "
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry's best protection against the most advanced security threats and targeted attacks.
FortiGate 200E | FortiGate 201E | |
---|---|---|
Hardware Specifications | ||
GE RJ45 WAN Interfaces | 2 | 2 |
GE RJ45 Management/HA Ports | 2 | 2 |
GE RJ45 Ports | 14 | 14 |
GE SFP Slots | 4 | 4 |
USB (Client / Server) | 1 / 1 | 1 / 1 |
Console (RJ45) | 1 | 1 |
Local Storage | - | 480 GB |
Included Transceivers | 0 | 0 |
System Performance | ||
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 20 / 9 Gbps | |
Firewall Latency (64 byte UDP packets) | 3 μs | |
Firewall Throughput (Packets Per Second) | 13.5 Mpps | |
Concurrent Sessions (TCP) | 2 Million | |
New Sessions/Second (TCP) | 135,000 | |
Firewall Policies | 10,000 | |
IPsec VPN Throughput (512 byte packets) | 9 Gbps | |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 | |
Client-to-Gateway IPsec VPN Tunnels | 5,000 | |
SSL-VPN Throughput | 900 Mbps | |
Concurrent SSL-VPN Users (Recommended Maximum) | 300 | |
IPS Throughput (HTTP / Enterprise Mix) 1 | 6 Gbps / 2.2 Gbps | |
SSL Inspection Throughput 2 | 1 Gbps | |
Application Control Throughput 3 | 3.5 Gbps | |
NGFW Throughput 4 | 1.8 Gbps | |
Threat Protection Throughput 5 | 1.2 Gbps | |
CAPWAP Throughput 6 | 1.5 Gbps | |
Virtual Domains (Default / Maximum) | 10 / 10 | |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 | |
Maximum Number of FortiTokens | 1,000 | |
Maximum Number of Registered FortiClients | 600 | |
High Availability Configurations | Active / Active, Active / Passive, Clustering | |
Dimensions | ||
Height x Width x Length (inches) | 1.7 x 17.0 x 11.9 | |
Height x Width x Length (mm) | 44 x 432 x 301 | |
Weight | 11.9 lbs (5.4 kg) | 12.12 lbs (5.5 kg) |
Form Factor | Rack Mount, 1 RU | |
Environment | ||
Power Required | 100–240V AC, 60–50 Hz | |
Maximum Current | 110 V / 3 A, 220 V / 1.5 A | 110 V / 7 A, 220 V / 3.5 A |
Power Consumption (Average / Maximum) | 70.98 / 109.9 W | |
Heat Dissipation | 374.9 BTU/h | |
Operating Temperature | 32–104°F (0–40°C) | |
Storage Temperature | -31–158°F (-35–70°C) | |
Humidity | 10–90% non-condensing | |
Operating Altitude | Up to 7,400 ft (2,250 m) | |
Compliance | ||
Safety | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
Certifications | ||
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
