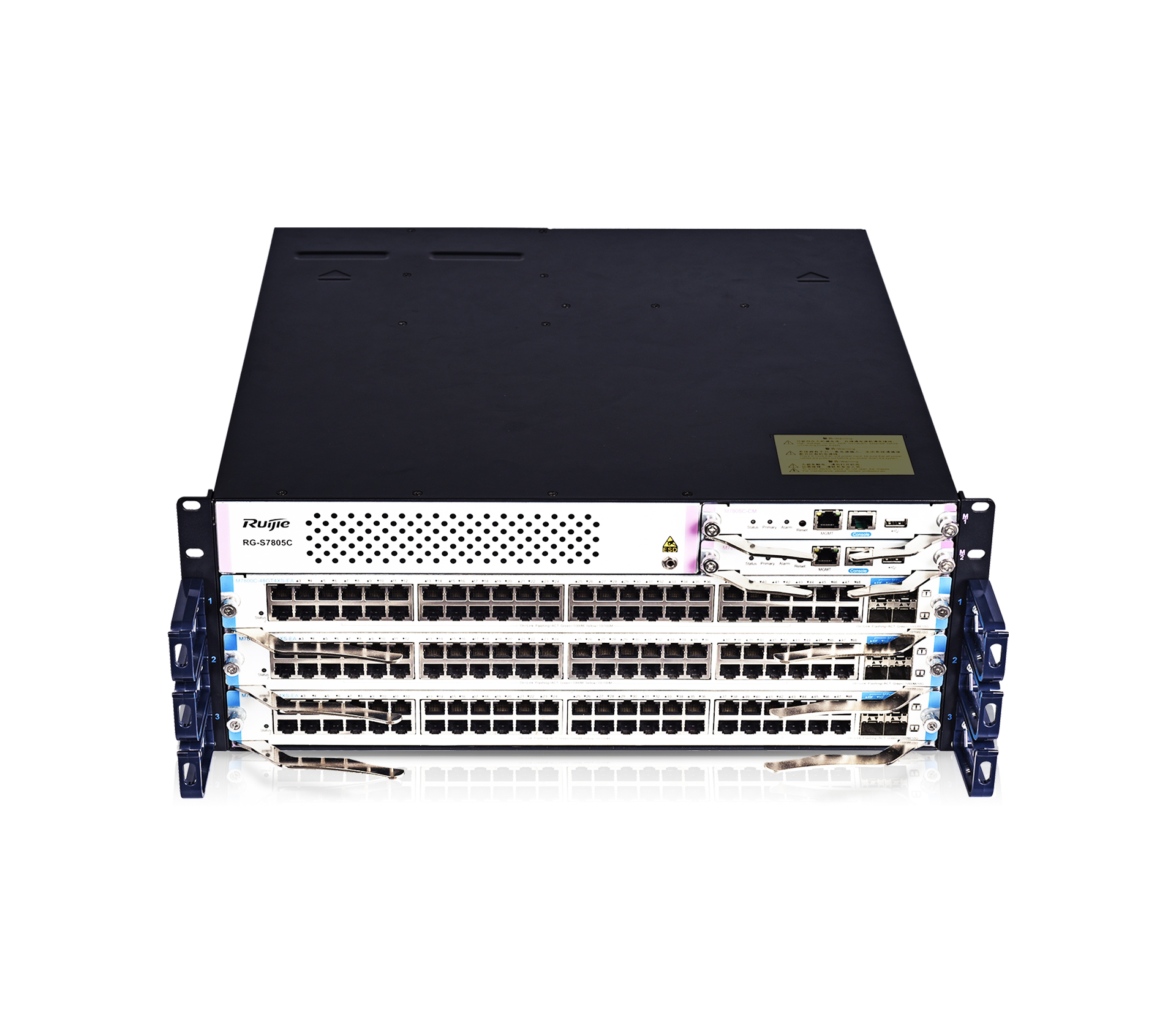

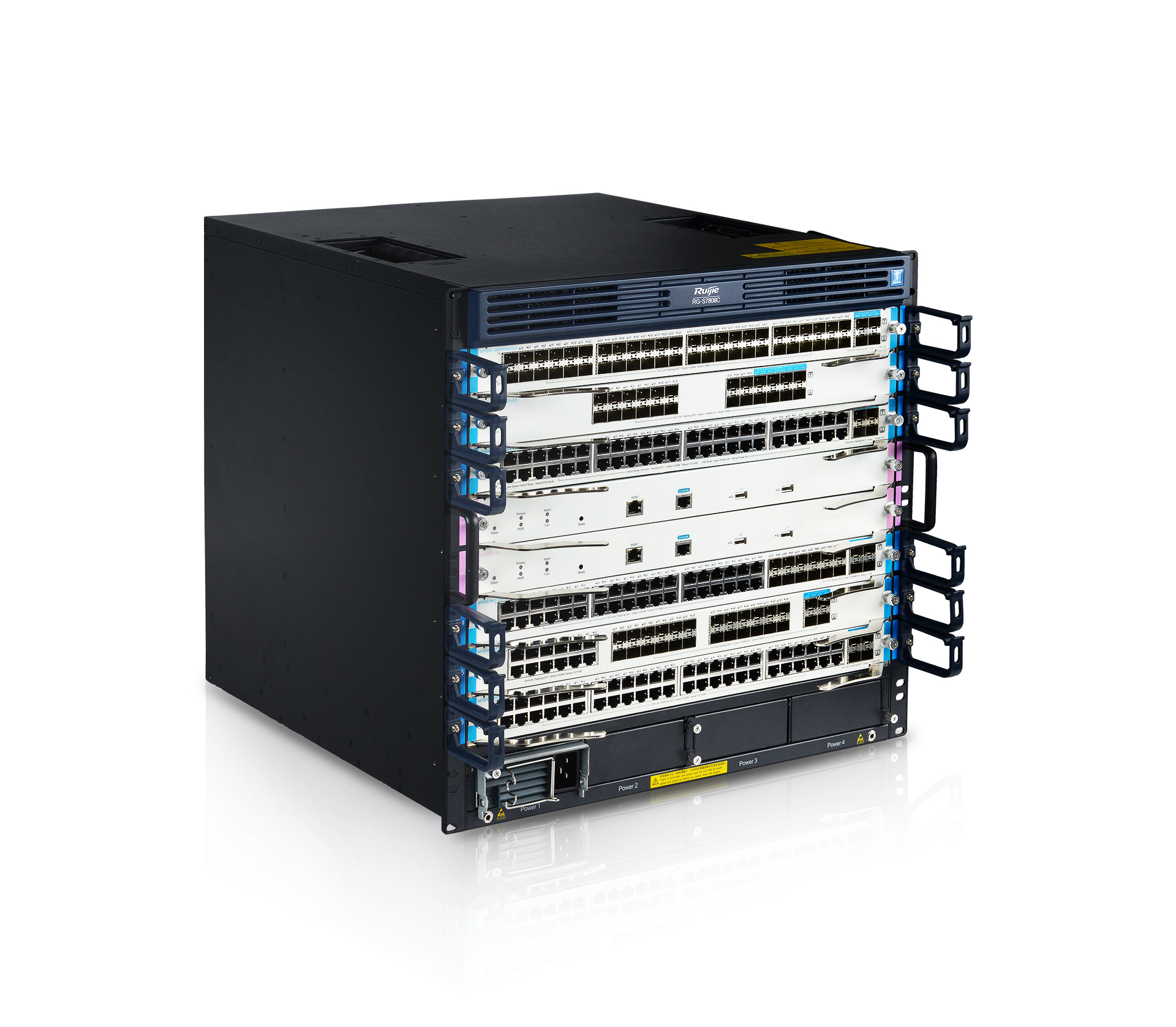

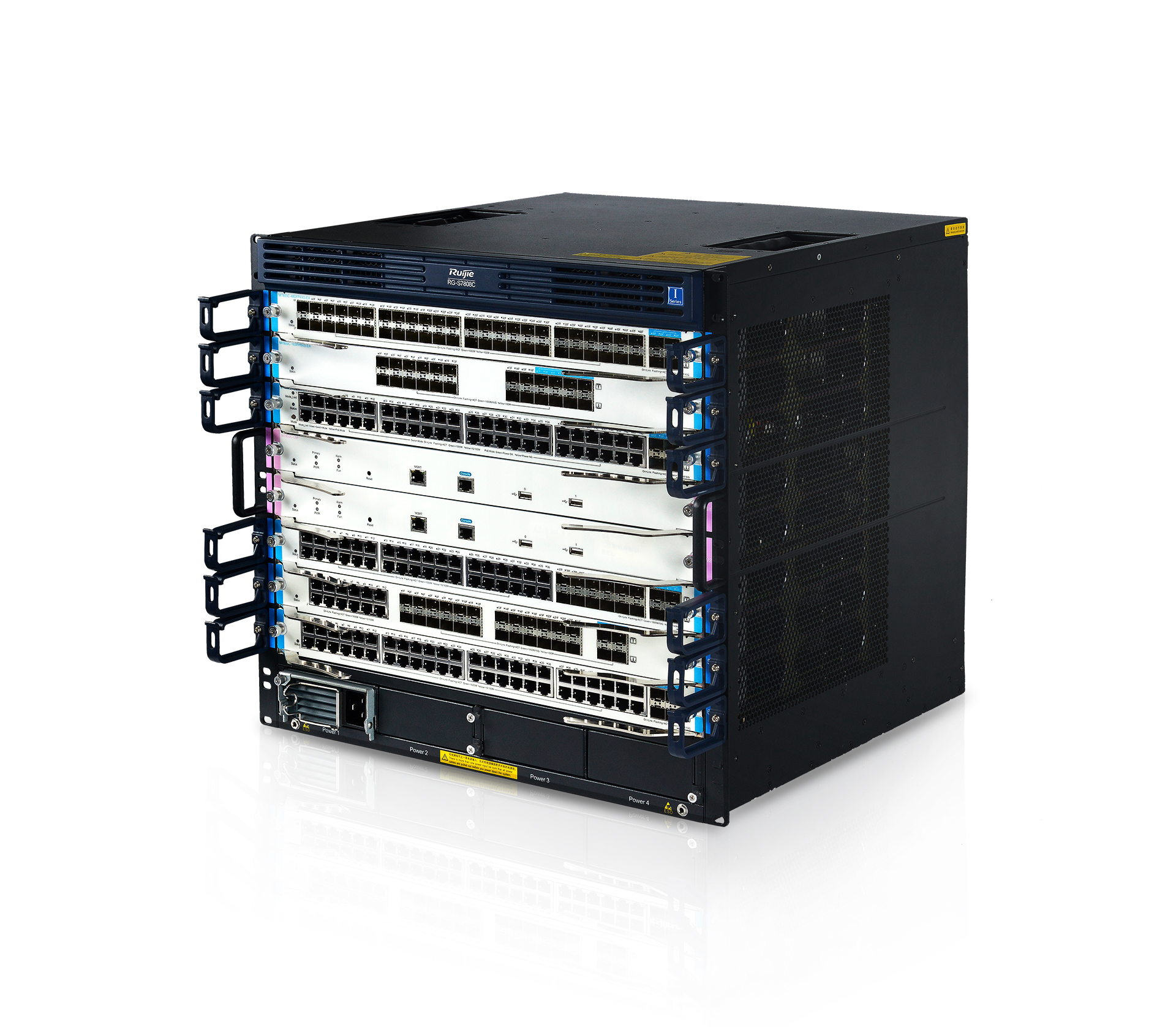

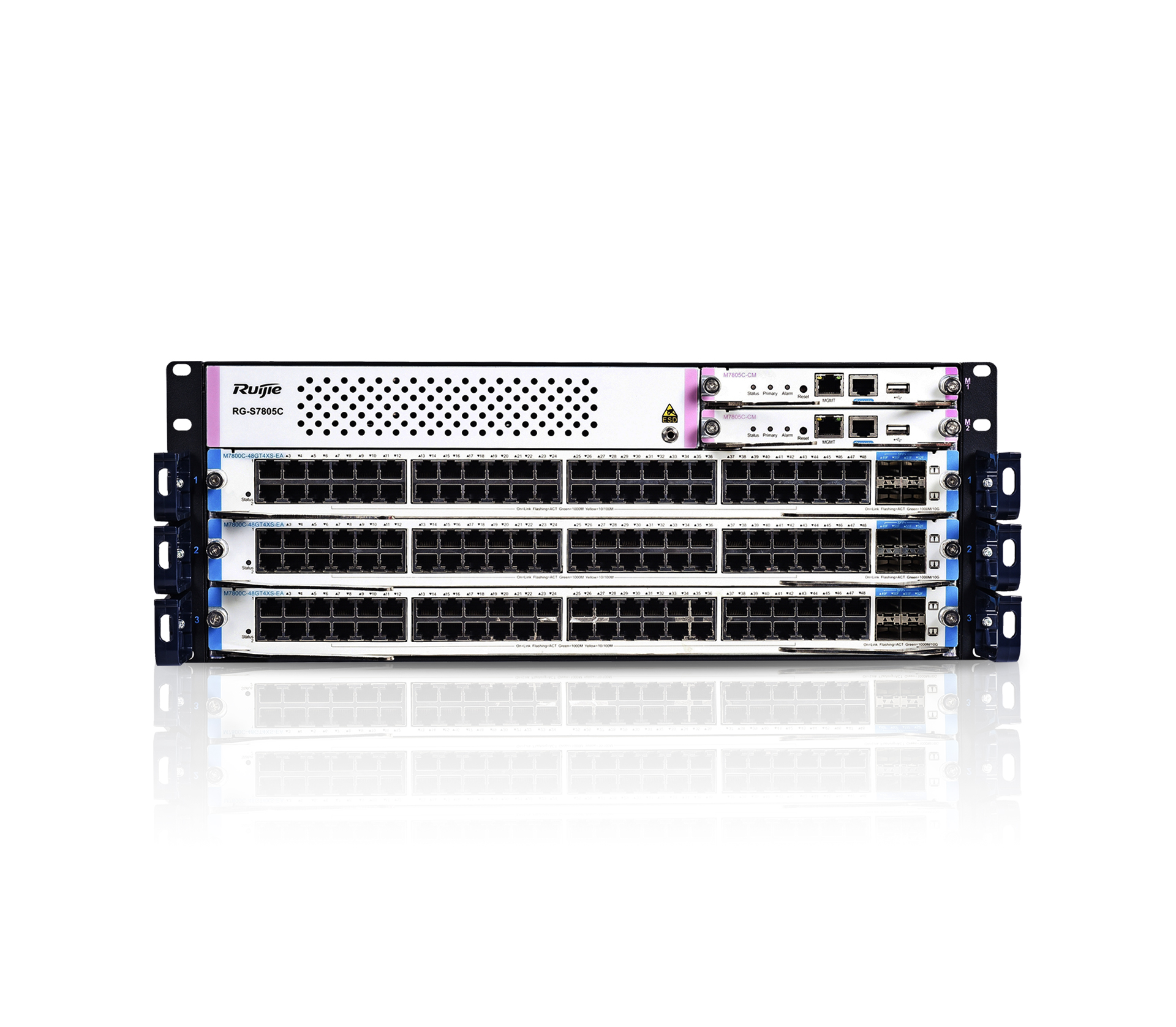

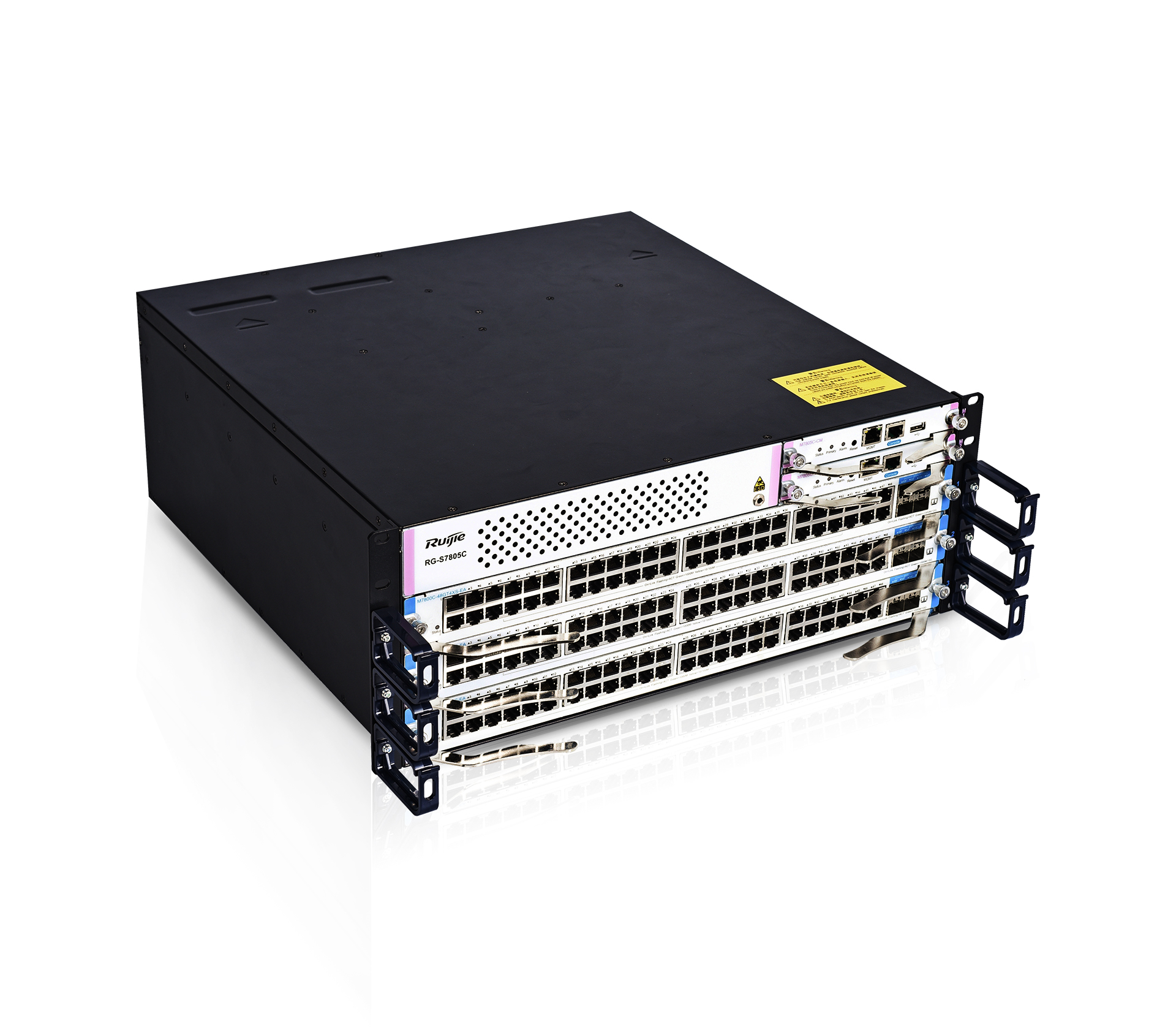

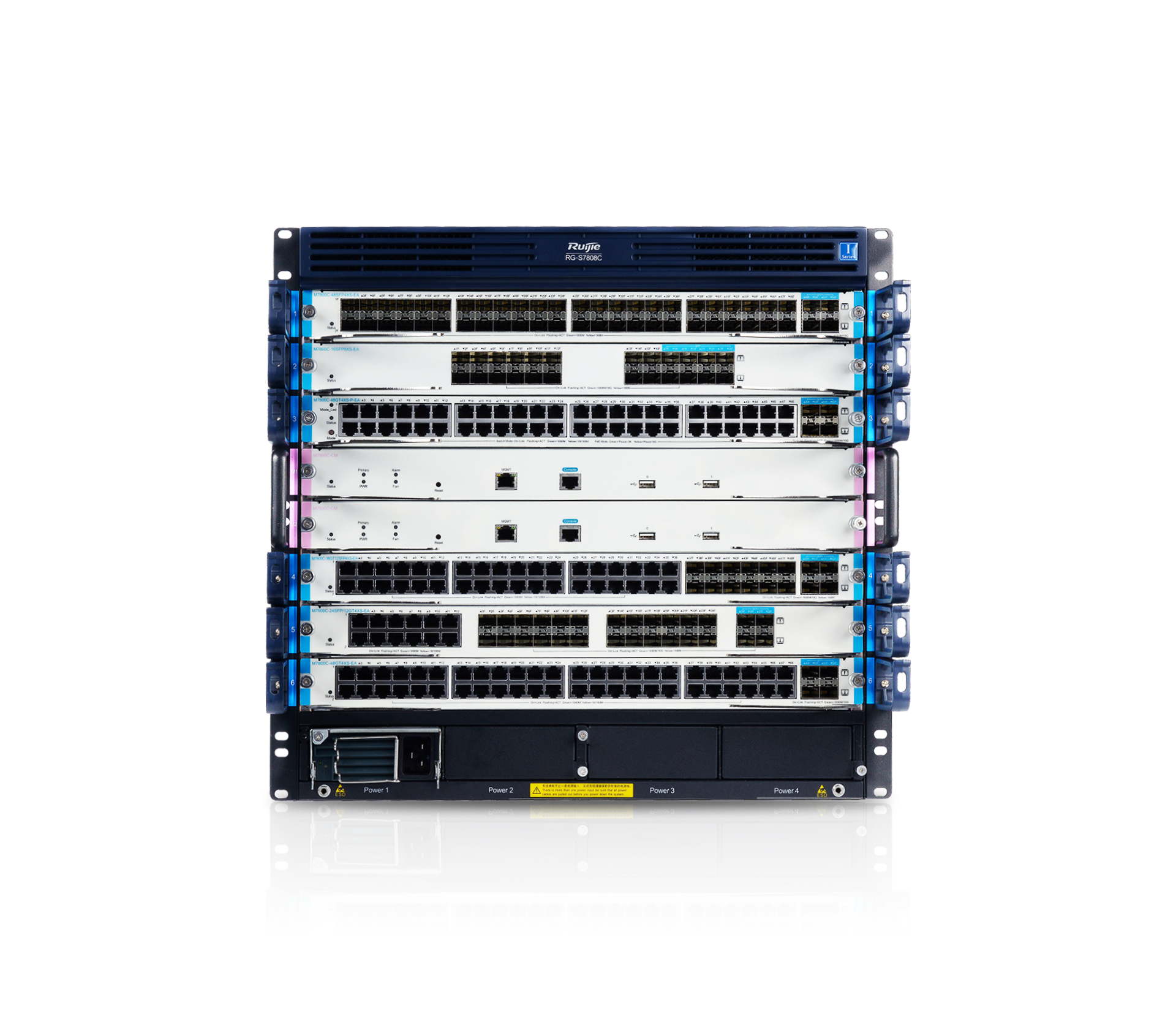

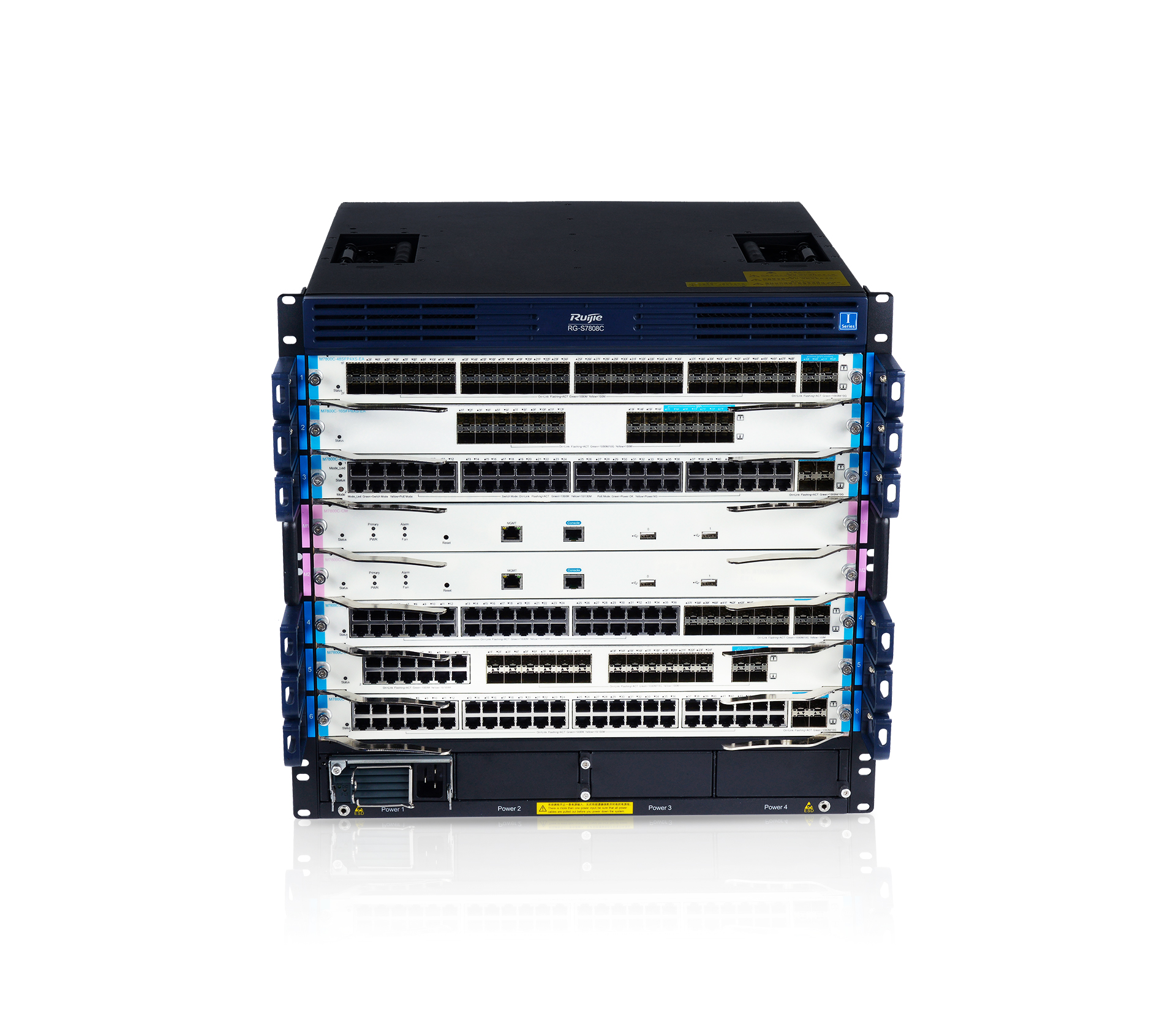

Ruijie RG-S7800C Core Switch Series is specially designed for next-gen integrated network. Implementing advanced RGOS11.X operating system and VSU/VSD virtualization technologies, the switch future supports future Ethernet requirements
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Bộ chuyển mạch ảo 3.0 (VSU)
Dòng sản phẩm Switch RG-S7800C hỗ trợ Virtual Switch Unit 3.0 (VSU). Công nghệ có thể ảo hóa 2 thiết bị thành một đơn vị logic, giúp giảm thiểu phần lớn số lượng nút mạng và giảm khối lượng công việc bảo trì. Chuyển đổi dự phòng liên kết 50 ~ 200ms vượt trội đảm bảo việc truyền tải các dịch vụ quan trọng một cách trơn tru và không bị gián đoạn. Bộ chuyển mạch RG-S7805C Series hỗ trợ tập hợp liên kết thiết bị chéo để dễ dàng kết nối kép lên máy chủ / bộ chuyển mạch, tối đa hóa hiệu quả lợi tức đầu tư băng thông.
Thiết bị chuyển mạch ảo (VSD)
Dòng Switch RG-S7800C hỗ trợ VSD trong đó một thiết bị có thể được ảo hóa thành nhiều đơn vị ảo. Mỗi đơn vị ảo có một giao diện quản lý cấu hình duy nhất và phân bổ phần cứng độc lập (ví dụ: bộ nhớ, TCAM và bảng chuyển tiếp phần cứng). Tất cả các tính năng hỗ trợ khởi động lại mà không ảnh hưởng đến các máy ảo khác. Người dùng có thể nhận ra việc phân bổ tài nguyên mạng dựa trên các nhu cầu khác nhau. Do đó, tài nguyên của bộ chuyển mạch lõi có thể được chia sẻ với các miền và người dùng khác. Với sự hỗ trợ của cả VSU3.0 và VSD, công tắc chuyển đổi sẽ mang lại khả năng tổng hợp tài nguyên hoàn chỉnh một cách thỏa đáng.
Độ tin cậy cấp nhà cung cấp dịch vụ
Thiết kế dự phòng của các thành phần chính của Dòng Switch RG-S7800C mang lại khả năng bảo vệ tuyệt vời: công suất động cơ điều khiển và mô-đun quạt đều hỗ trợ dự phòng 1 + 1. Tất cả các thành phần dự phòng đều có thể thay thế nóng để tối đa hóa độ tin cậy và tính khả dụng. Công nghệ vá nóng cũng được hỗ trợ để có thể nâng cấp trực tuyến.
Hỗ trợ GR cho OSPF / IS-IS / BGP và BFD cho VRRP / OSPF / BGP4 / ISIS / ISISv6 / định tuyến tĩnh để cho phép cơ chế phát hiện lỗi nhanh chóng của các giao thức khác nhau. Tính năng này giảm thiểu thời gian phát hiện lỗi xuống dưới 50ms.
Hệ điều hành mô-đun đa xử lý
Kể từ năm 1998, Ruijie đã đầu tư vào R & D của hệ điều hành mô-đun. Nền tảng phần mềm RG-S7800C Switch Series được thiết kế dựa trên hệ điều hành mô-đun đa xử lý RGOS 11.X thế hệ tiếp theo để tích hợp các tính năng dịch vụ như tường lửa kết hợp lỏng lẻo, không dây và xác thực thành một hệ điều hành mạng đám mây thống nhất. Nền tảng phần mềm RG-S7800C Series cũng hỗ trợ ảo hóa hoàn toàn và cung cấp các tính năng phong phú của trung tâm dữ liệu và mạng khuôn viên. Các chỉ số về tính khả dụng chính như mô-đun đa xử lý, sao lưu quy trình và bản vá nóng đã đạt mức hàng đầu trong ngành.
Hiệu quả năng lượng tuyệt vời
Hệ thống bên trong được thiết kế để cung cấp điện áp thấp với công suất mô-đun hiệu suất cao để tạo thành một hệ thống cung cấp điện hiệu quả hơn. CPU đa lõi hỗ trợ quản lý năng lượng động với tất cả các cổng đồng Ethernet thực hiện tiêu chuẩn Ethernet tiết kiệm năng lượng (EEE) để tiết kiệm điện khi tải nhẹ.
Quạt thông minh hỗ trợ 256 điều chế tốc độ với khả năng kiểm soát nhiệt độ chính xác, tiết kiệm năng lượng và kiểm soát tiếng ồn. Thiết bị có thể hoạt động ở nhiệt độ cao trong thời gian dài hoặc trong môi trường khắc nghiệt. Dòng Switch RG-S7800C nhờ đó giúp khách hàng tiết kiệm tối đa chi phí điều hòa.
Model |
RG-S7805C |
RG-S7808C |
Module Slots |
5(2 for control engines) |
8 (2 for control engines) |
Modular Power Slots |
2(for system power) |
6 (4 for system power; 2 for PoE power) |
Switching Capacity |
4800Gbps |
9600Gbps |
Packet Forwarding Rate |
7142.4Mpps |
14284.8Mpps |
Max. Number of 10GE Ports |
Up to 24 |
Up to 48 |
PoE |
Non Support |
Support |
ARP Table |
Up to 20K |
Up to 20K |
MAC Address |
Up to 64K |
Up to 64K |
Routing Entries |
Up to 10K |
Up to 10K |
Multicast Entries (IPv4/IPv6) |
Up to 8K/4K |
Up to 8K/4K |
ACL Entries |
Up to 3,500 |
Up to 3,500 |
VLAN |
Up to 4K |
Up to 4K |
QinQ |
Basic QinQ, Flexible QinQ |
Basic QinQ, Flexible QinQ |
Link Aggregation |
AP, LACP |
AP, LACP |
Port Mirroring |
Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring |
Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring |
Spanning Tree Protocols |
Support STP, RSTP and MSTP |
Support STP, RSTP and MSTP |
DHCP |
Support DHCP relay, DHCP snooping, DHCP server, DHCP client |
Support DHCP relay, DHCP snooping, DHCP server, DHCP client |
Multiple Spanning Tree (MST) Instances |
64 (not include default 0) |
64 (not include default 0) |
Maximum Aggregation Port (AP) |
Up to 2,048 |
Up to 2,048 |
Virtual Routing and Forwarding (VRF) Instances |
Up to 1,000 |
Up to 1,000 |
VSU (Virtual Switch Unit) |
Up to 2 stack members |
Up to 2 stack members |
VSD (Virtual Switch Device) |
Up to 4 VSD units |
Up to 4 VSD units |
L2 Features |
Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032),MAC Based VLAN,Voice VLAN,RLDP |
Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032) |
Layer 2 Protocols |
IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP |
IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP |
Layer 3 Features |
ARP, IPv4/v6, PBR v4/v6 |
ARP, IPv4/v6, PBR v4/v6 |
Layer 3 Protocols (IPv4) |
Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP) |
Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP) |
IPv4 Features |
Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel |
Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel |
IPv6 Features |
Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing,Policy-based routing, Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel |
Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing |
Basic IPv6 Protocols |
DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6 |
DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6 |
Routing Protocols |
RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy |
RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy |
IPv6 Tunnel Features |
6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4) |
6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4) |
Multicast |
IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing |
IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing |
G.8032 |
Support |
Support |
ACE Capacity |
Up to 3,500 |
Up to 3,500 |
ACL |
Standard/Extended/Expert ACL; ACL 80; IPv6 ACL |
Standard/Extended/Expert ACL; ACL 80; IPv6 ACL |
QoS |
802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit |
802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit |
IPv6 ACL |
Support |
Support |
Reliability |
Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing |
Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing |
EEE Format |
Support EEE (802.3az) |
Support EEE (802.3az) |
Security |
NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login |
NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login |
Manageability |
Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow |
Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow |
Hot Patch |
Support |
Support |
Smart Temperature Control |
Fan speed auto-adjustment; Fan malfunction alerts; Fan status check |
Fan speed auto-adjustment; Fan malfunction alerts; Fan status check |
Smart Power Supply |
Support power control and management |
Support power control and management |
Other Protocols |
DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog |
DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog |
Dimensions |
442mmx 451mmx 175mm,4U |
442mm ×595mm ×439mm, 10U |
Rack Height |
4RU |
10RU |
Weight |
12.42kg (total weight of empty chassis and fans) |
32.35kg (total weight of empty chassis and fans) |
MTBF |
312K hours |
312K hours |
Safety Standards |
IEC 60950-1, EN 60950-1 |
|
Emission Standards |
EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
Power Supply |
RG-PA300I-F:90-290Vac and 1 92-290Vdc ~300W |
RG-PA1600I-F:90-180V~1200W;180-264V~ 1600W RG-PA600I-F:90-180V~ 600W;180-264V~ 600W RG-PA1600I-PL:90-175V~1000W;176-264V~1600W RG-PA3000I-PL:90-175V~1200W;176-209V~2500W;210-264V~ :3000W |
Power Consumption |
<80W |
<176W |
PoE Power Consumption |
Non Support |
<800W |
Temperature |
Operating temperature: 0ºC to 50ºC |
Operating temperature: 0ºC to 50ºC |
Storage temperature: -40ºC to 70ºC |
Storage temperature: -40ºC to 70ºC |
|
Humidity |
Operating humidity: 10% to 90% RH (non-condensing) |
Operating humidity: 10% to 90% RH (non-condensing) |
Storage humidity: 5% to 95% RH |
Storage humidity: 5% to 95% RH |
|
Operating Altitude |
3,000m to 5,000m |
3,000m to 4,000m |
