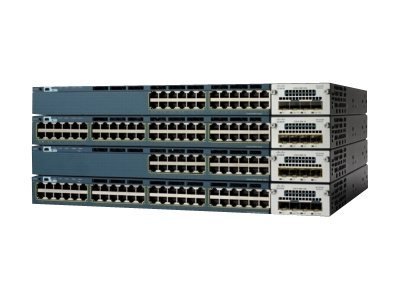

Switch Cisco WS-C3560X-24P-S (Thiết bị chuyển mạch cao của CISCO)

Thông Số  Kỹ Thuật Switch Cisco WS-C3560X-24P-S

-  Hỗ trợ 8 x 10/100/1000 Gigabit Ethernet PoE ports

- IOS hỗ trợ : Lan Base

- Switch Chuyển mạch Layer 2

- DRAM Memory : 256MB

- Flash Memory: 64MB Flash

-  Nguồn: 120/230V

Các Loại Module tương thích với Switch WS-C3560 Plus Series

- Module GLC-LH-SM

- Module GLC-SX-MMD

- Module CAB-CONSOLE-RJ45

Switch Access chuyên dụng thích hợp sử dụng cho Công ty, Trường học, Khách Sạn...

* Bảo Hành 1 đổi 1 trong vòng 12 Tháng

Cisco Catalyst WS-C3560X-24P-S is 24 Gigabit Ethernet POE+ ports standalone switch in IP base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-24P-S support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features.

- WS-C3560X-24P-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 routing capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-24P-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.

WS-C3560X-24P-S

Cisco Catalyst 3560-X Series Switch

• 24 * 10/100/1000 Gigabit Ethernet ports with optional uplink network modules

• Dual redundant, modular power supplies and fans

• LAN base feature set with upgrade option to IP base or IP service

• Layer 2 switching with static routing and SVI supporting

• 64MB flash and 256 memory (DRAM)

• USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

- Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports (Figure 1);
The default switch configuration doesn't include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:

Dual Redundant Modular Power Supplies

- Cisco Catalyst 3750-X Series and 3560-X Series Switches support dual redundant power supplies (Figure 2);
One power supply is shipped with the switch by default;
Other power supply/suppliers can be purchased when ordering the switch or next time according to your needs.
If only one power supply is installed, it should always be in the power supply bay 1.

Table below shows the different power supplies available in these switches and available PoE power.

Power Supply Models
