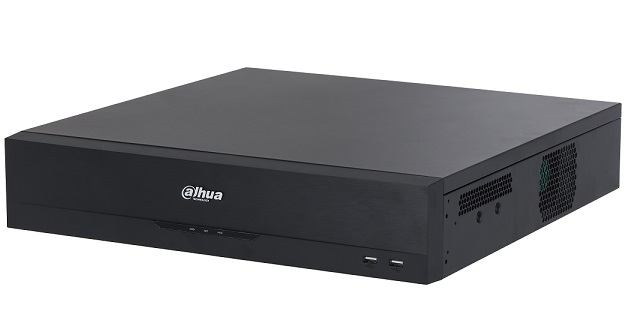

Đầu ghi hình Penta-brid 16 kênh DAHUA DH-XVR5816S-I3

Đầu ghi hình Penta-brid 16 kênh DAHUA DH-XVR5816S-I3

- Đầu ghi hình 16 kênh, hỗ trợ camera HDCVI/TVI/AHD/Analog/IP.

- Hỗ trợ chuẩn nén AI-Coding.

- Hỗ trợ tối đa 4 kênh bảo vệ vành đai (analog) hoặc 2 kênh nhận diện khuôn mặt (analog) hoặc 16 kênh SMD Plus (analog).

- Chuẩn nén hình ảnh: H265+/H265 với hai luồng dữ liệu độ phân giải 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps.

- Hỗ trợ ghi hình camera độ phân giải 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps).

- Hỗ trợ kết nối nhiều nhãn hiệu camera IP (16+8) hỗ trợ lên đến camera 6MP với chuẩn tương tích Onvif 21.06.

- Tương thích với tín hiệu ngõ ra: 1 VGA, 2 HDMI (HDMI1 chuẩn 4K), 1 TVout.

- Hỗ trợ 8 ổ cứng tối đa 16TB, 1 cổng eSATA để mở rộng lưu trữ.

- Hỗ trợ 4 cổng USB 2.0, 2 cổng mạng RJ45(1000Mbps), 1 cổng RS485, hỗ trợ điều kiển quay quét 3D thông minh với giao thức Dahua.

- Hỗ trợ xem lại và trực tiếp qua mạng máy tính thiết bị di động, hỗ trợ cấu hình thông minh qua P2P.

- Cổng audio: 16 in/ 1 out (BNC extenal).

- Hỗ trợ 1 mic in/ 1 mic out, hỗ trợ đàm thoại hai chiều.

- Cổng alarm: 16 in 6 out.

- Quản lý đồng thời 128 tài khoản kết nối.

- Hỗ trợ truyền tải âm thanh, báo động qua cáp đồng trục.

- Thiết kế nút reset cứng trên mainboard.

Đặc tính kỹ thuật

Model	DH-XVR5816S-I3
System
Main Processor	Embedded Processor
Operating System	Embedded Linux
Operating Interface	Web; Local GUI
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity	Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)	2 channels
SMD Plus
SMD Plus by Recorder	16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input	16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input	1. CVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@25/30 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@25/30 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input	Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding Capacity	Main stream: All channel 5M-N@(1 fps–10 fps); 4M-N@ (1 fps–15 fps); 1080p@(1 fps–15 fps); 1080N@(1 fps–25/30 fps); 720p@(1 fps–25/30 fps); 960H@(1 fps–25/30 fps); D1@(1 fps–25/30 fps); CIF@(1 fps–25/30 fps) Sub stream: D1@(1 fps–15 fps); CIF@(1 fps–15 fps)
Dual-stream	Yes
Video Frame Rate	PAL: 1 fps–25 fps NTSC: 1 fps–30 fps
Video Bit Rate	32 kbps–6144 kbps
Audio Sampling	8 kHz, 16 bit
Audio Bit Rate	64 kbps
Video Output	2 HDMI, 1 VGA, 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression	AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression	G.711a; G.711u; PCM
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 21.06; CGI
Browser	Chrome, IE9 or later, Firefox
Network Mode	Multi-address mode,Fault Tolerance,Load Balance
Recording Playback
Record Mode	General, motion detection; intelligent; alarm; POS
Recording Playback	1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection; video loss; tampering; local alarm
Anomaly Alarm	No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm	Face detection; face recognition; perimeter protection
Alarm Linkage	Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
TV Output	Yes
Audio Input	16-channel BNC (external) 16-channel BNC (coaxial audio)
Audio Output	1-channel BNC
Two-way Talk	1-channel BNC
Alarm Input	16 channels
Alarm Output	6 channels
HDD Interface	8 SATA ports,up to 16TB, the maximum HDD capacity varies with environment temperature
eSATA	1
RS-232	1 port, for PC Communication & Keyboard
RS-485	1 port, for PTZ control
USB	4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI	2
VGA	1
Network Port	2 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply	100–240 VAC, 50±2% Hz
Power Consumption
Net Weight	6.72 kg (14.81 lb)
Product Dimensions	2U, 439.9 mm × 463 mm × 94.9 mm
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity	10%–90% (RH)
Installation	Rack or desktop

- Bảo hành: 24 tháng.
