Mỹ Thương hiệu: Commscope

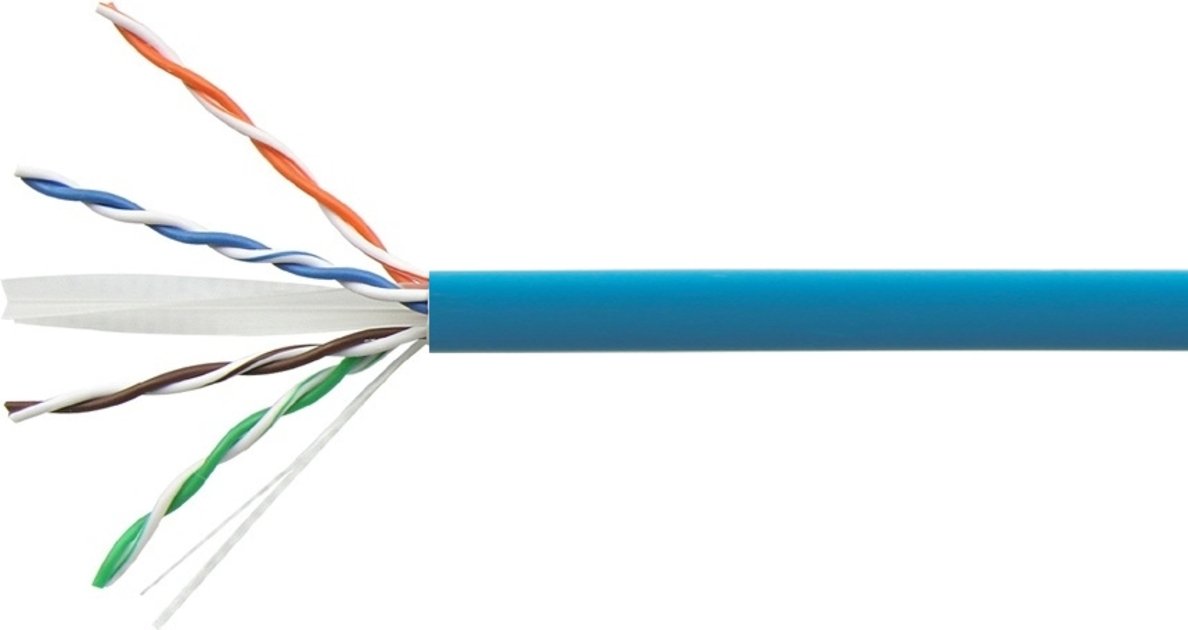

Cáp mạng Commscope/AMP Cat6 UTP 4 Pair 24 AWG (P/N: 1427071-6)

Hàng chính hãng

Giá: 2.900.000 ₫ 2.950.000 ₫ -2%

Tình trạng: Hàng chính hãng - New 100%
Part Number: 1427071-6
Kho hàng: Còn hàng
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: Copper Cable, category 6, 4 pair, UTP, CM rated, 24 AWG, 305 m reel in box, blue
Review: Xem tại đây

Bán hàng: Mr. Đức Mr. Thành Mr. Quan Mr. Thịnh Mr. Vinh

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Product Classification

Regional Availability	Asia
Portfolio	NETCONNECT®
Product Type	Twisted pair cable

General Specifications

Product Number	CS30CM
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	Blue
Pairs, quantity	4
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

Dimensions

Cable Length	304.8 m \| 1000 ft
Diameter Over Conductor	0.978 mm \| 0.0385 in
Diameter Over Jacket, nominal	5.588 mm \| 0.22 in
Conductor Gauge, singles	24 AWG

Electrical Specifications

Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	5 %
dc Resistance, maximum	9.38 ohms/100 m \| 2.859 ohms/100 ft
Delay Skew, maximum	45 ns
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	5.6 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	67 %
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Propagation Delay, maximum	536 ns/100m @250MHz
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Electrical Cable Performance

CommScope

Std

Refers to the standard value listed under Transmission Standards in the Electrical Specifications above

Typ

Typical

Insertion Loss (dB/100m)

Near End Crosstalk (dB/100m)

ACR

Attenuation to Crosstalk Ratio (dB/100m))

PSNEXT

Power Sum Near End Crosstalk (db/100m)

PSACR

Power Sum Attenuation to Crosstalk Ratio (dB/100m)

ACRF

Attenuation to Crosstalk Ratio - Far End (dB/100m)

PSACRF

Insertion Loss (dB/100m)

Return Loss (dB)

Frequency	IL, STD	NEXT, STD	ACR, STD	PSNEXT, STD	PSACR, STD	ACRF, STD	PSACRF, STD	RL, STD	TCL, STD	ELTCTL, STD
1.00 MHz	2.0	74.3	72.3	72.3	70.3	67.8	64.8	20.0	40.0	35.0
4.00 MHz	3.8	65.3	61.5	63.3	59.5	55.8	52.8	23.0	40.0	23.0
8.00 MHz	5.3	60.8	55.4	58.8	53.4	49.9	46.9	24.5	40.0	16.9
10.00 MHz	6.0	59.3	53.3	57.3	51.3	47.8	44.8	25.0	40.0	15.0
16.00 MHz	7.6	56.2	48.7	54.2	46.7	43.7	40.7	25.0	38.0	10.9
20.00 MHz	8.5	54.8	46.3	52.8	44.3	41.8	38.8	25.0	37.0	9.0
25.00 MHz	9.5	53.3	43.8	51.3	41.8	39.8	36.8	24.3	36.0	7.0
31.25 MHz	10.7	51.9	41.2	49.9	39.2	37.9	34.9	23.6	35.1
62.50 MHz	15.4	47.4	32.0	45.4	30.0	31.9	28.9	21.5	32.0
100.00 MHz	19.8	44.3	24.5	42.3	22.5	27.8	24.8	20.1	30.0
155.00 MHz	25.2	41.4	16.3	39.4	14.3	24.0	21.0	18.8	28.1
200.00 MHz	29.0	39.8	10.8	37.8	8.8	21.8	18.8	18.0	27.0
250.00 MHz	32.8	38.3	5.5	36.3	3.5	19.8	16.8	17.3	26.0

Material Specifications

Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	PVC

Mechanical Specifications

Minimum Bend Radius Note

4 times the outer cable diameter

Environmental Specifications

Installation temperature	-0 °C to +60 °C (-32 °F to +140 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature	-20 °C to +80 °C (-4 °F to +176 °F)
Environmental Space	Non-plenum
Flame Test Method	CM \| UL 1685

Packaging and Weights

Packaging Type

Reel in box

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
